Preliminary Work

  1. Raise the vehicle.
    • 4X00IN Lifting the vehicle

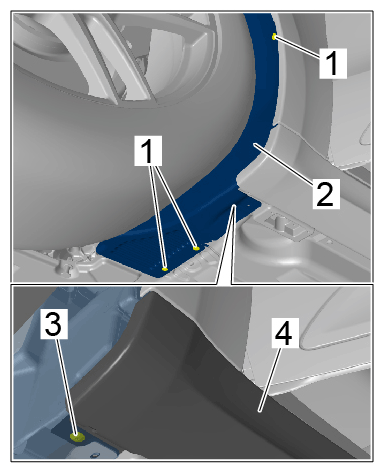

  2. Unscrew screws -1-  and loosen front wheel housing liner -2-  until screw -3-  for the door entry guard -4-  is accessible.
    G15160347Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front wheel housing liner
