Removing Ventilation Guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

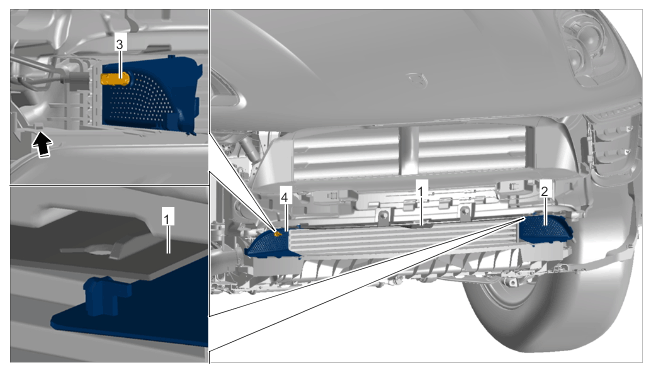

Ventilation guide

1. 1.1  Unclip ventilation guides -2 and 4-  at the sides of the holder -Arrow-  and swivel them aside.
2. 1.2  Pull outside temperature sensor -3-  out of the right ventilation guide -4-  .
3. 1.3  Guide ventilation guides -2 and 4-  out of the air guide -1-  and remove them.
