Removing Front Logo

  1. Open the front lid.
  2. Remove front logo -1-  .
    1. 2.1  Unscrew nuts -3-  .
    2. 2.2  Remove front logo -1-  and base -2-  .

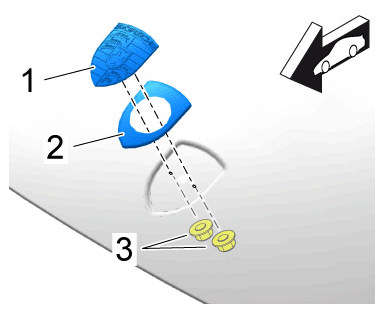

    G15160321Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front logo
