Removing Radiator Grille

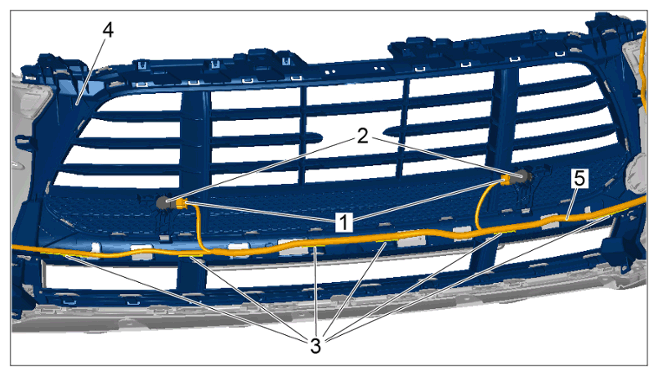

1. 1.1  Release and disconnect electric plug connections -1-  on ParkAssist sensors -2-  .
2. 1.2  Unclip line bracket -3- from the radiator grille -4-.
3. 1.3  Move section of line for ParkAssist sensors -5- aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line for ParkAssist sensors

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

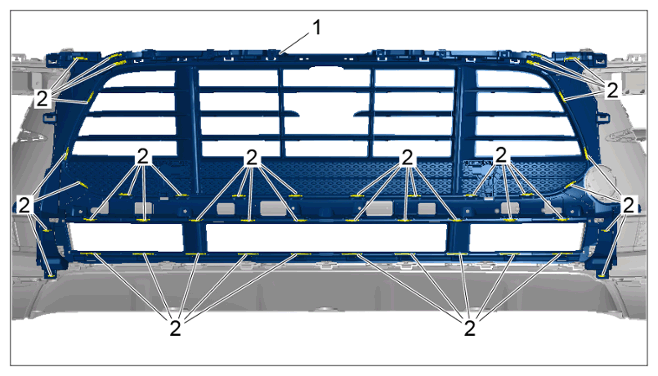

Radiator grille
