Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing auxiliary headlights to front apron Item 3 Tightening torque 3 Nm (2 ftlb.)

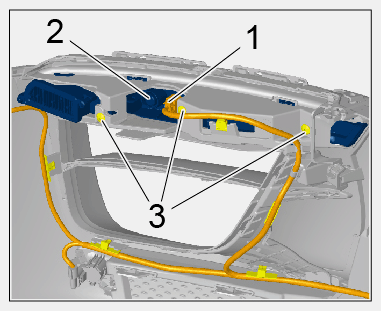

G15160308Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Auxiliary headlights
