Removing Front Air Grille (Basic)

1. 1.1  Release and disconnect electric plug connection -1-  on auxiliary headlight.
2. 1.2  Unclip line bracket -2-  from the front air grille (basic) -3-  .
3. 1.3  Move section of line for auxiliary headlight aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Section of line for auxiliary headlight

1. 2.1  Unscrew and remove screws -1-  .
2. 2.2  Unclip trim on front air grille (basic) -2-  at the locking lugs -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

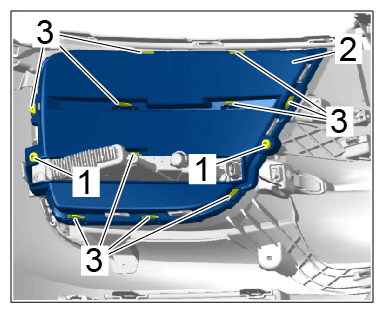

Trim on front air grille (basic)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

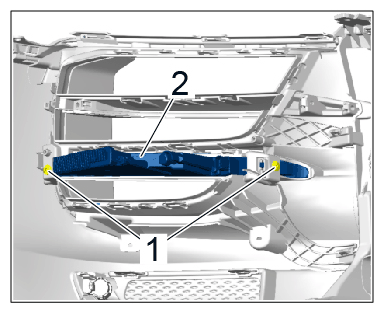

Screws for auxiliary headlights

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

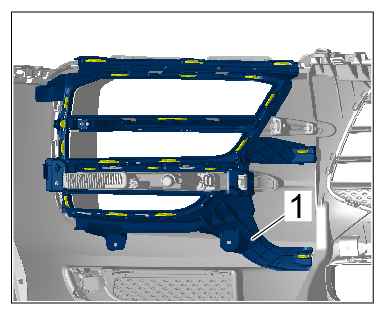

Front air grille (basic)
