Removing Light-Emitting Diode For Alarm System

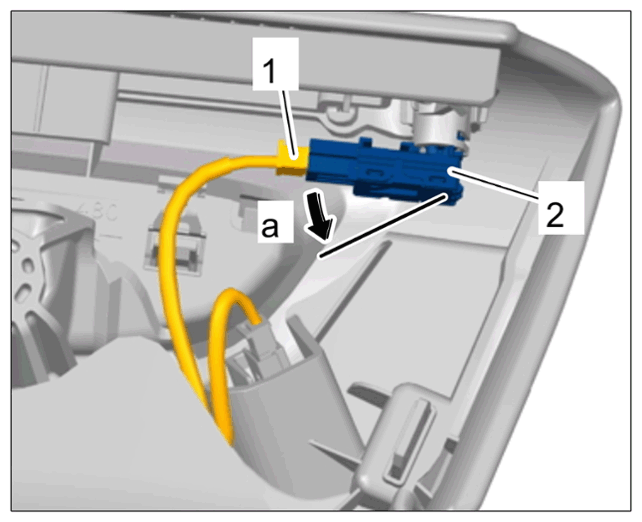

  1. Disconnect electric plug connection -1-  from light-emitting diode for alarm system -2-  .
    G15162829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Turn light-emitting diode for alarm system -2-  approx. 45° anti-clockwise -arrow a-  and pull it out of the front door panel.
    G15162830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Light-emitting diode for alarm system
