Removing Kessy/Pas Antenna On Centre Console

  1. Remove KESSY/PAS antenna on centre console -2-  .

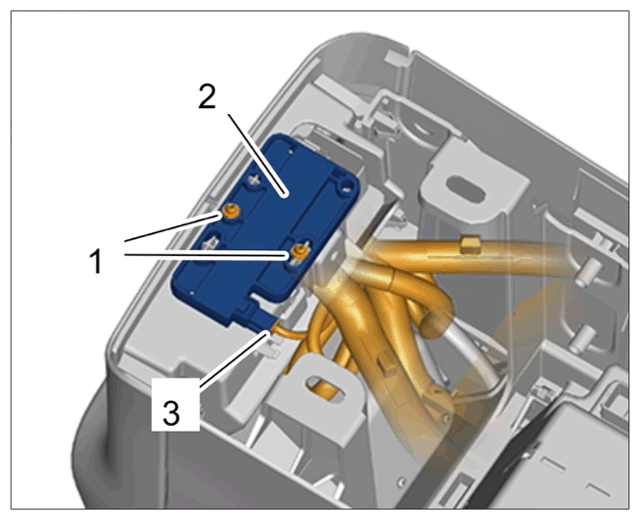

    G15162812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    KESSY/PAS antenna on centre console

    1. 1.1  Release and unplug electric plug connection -3-  .
    2. 1.2  Unscrew fastening screws -1-  and remove KESSY/PAS antenna on centre console -2-  .
