Removing Glove Box Light

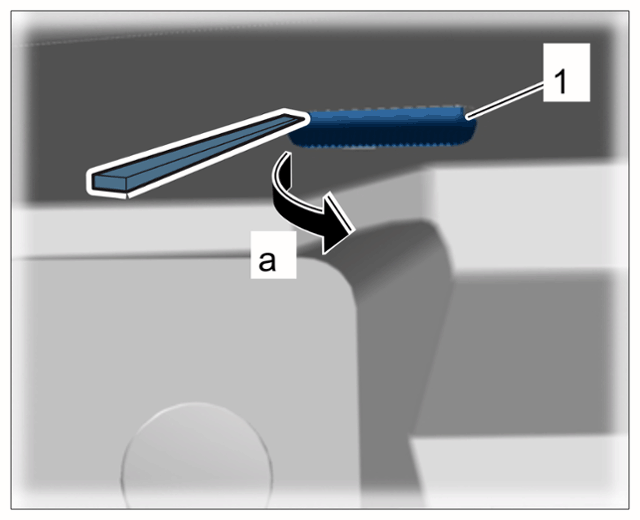

  1. Open the glove compartment and unclip glove compartment light -1-  from the glove compartment using a plastic wedge -arrow a-  .
    G15162794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Glove box light

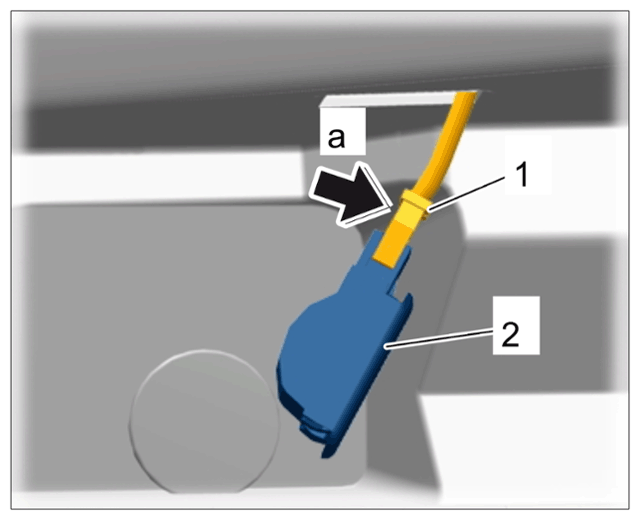

  2. Release electric plug connection -1- (-arrow a-)  and disconnect it from the glove compartment light -2-  .
    G15162795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
