Removing Luggage Compartment Light

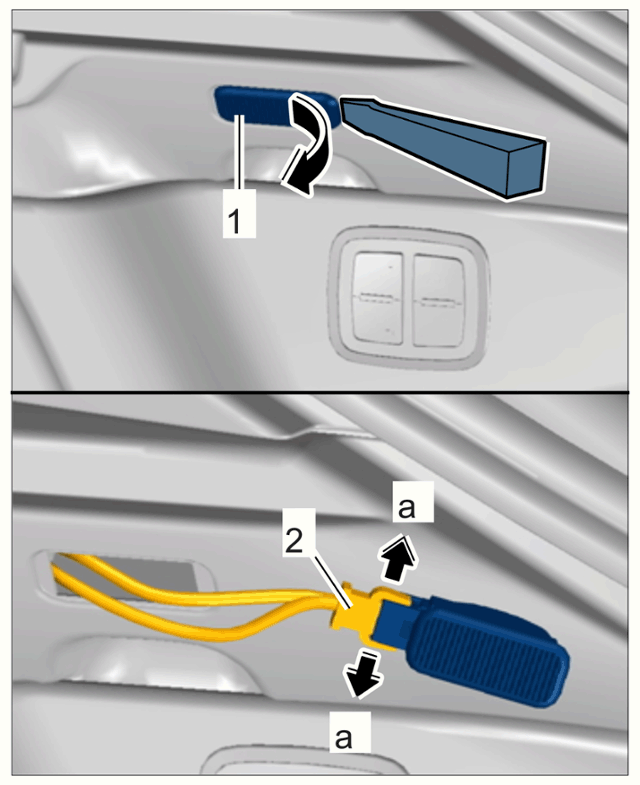

  1. Lever luggage compartment light -1-  out of the trim panel using a plastic wedge -Arrow-  .
    G15162789Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Luggage compartment light

  2. Release electric plug connection -2- (-arrows a)  and disconnect it from the luggage compartment light -1-  .
    G15162790Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Luggage compartment light
