Removing Bulb

  1. Carefully prise off lens -1-  using a plastic wedge and remove it from the housing -2- (-Arrows-)  .
    G15162791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bulb

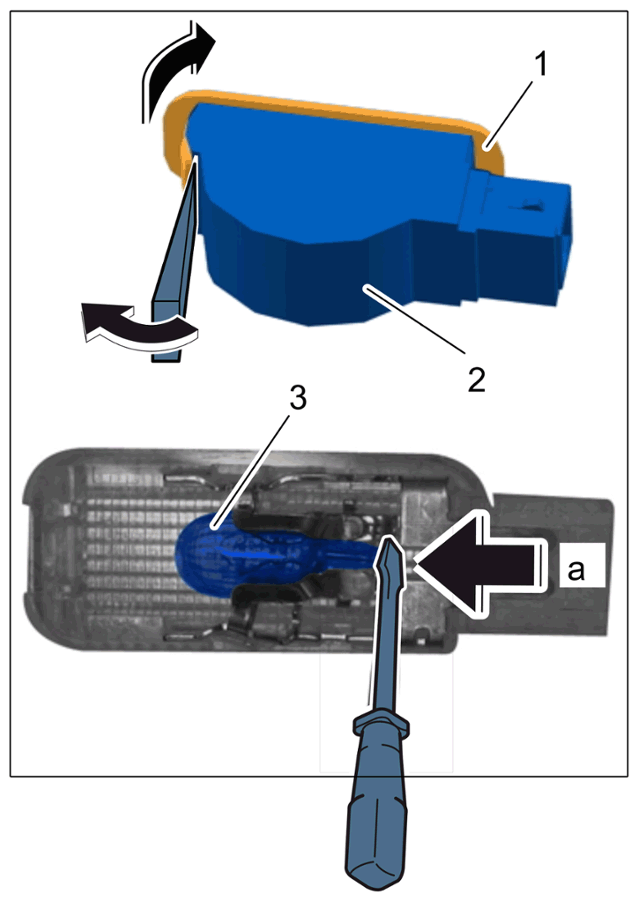

  2. Press bulb -3-  out of the lens holder using a small screwdriver -arrow a-  .
    G15162792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bulb
