Installing Front Camera
Information
CAUTION:
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
- Do not touch electric pins and plug contacts.
Information
CAUTION:
Never touch the lens of the front camera.
- Connect electric plug connection -1-
on the front camera -2- (-arrow a-)
until it engages securely.
Electric plug connection

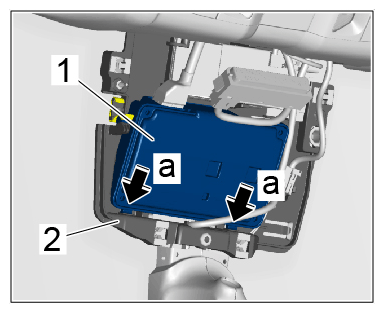

- Fit front camera -1-
on holder -2-
so that the two retaining pins -arrows a-
are positioned on the mounting points.
Front camera

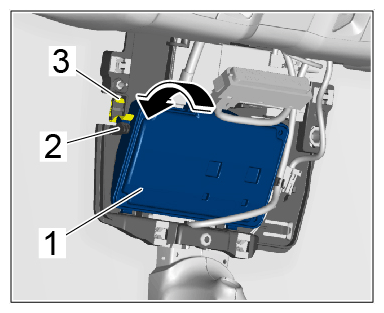

- Swivel front camera in -Arrow-
and engage between holder -2-
and retaining clip -3-
.
Front camera
