Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws securing switch console to centre console   Tightening torque 4 Nm (3 ftlb.)

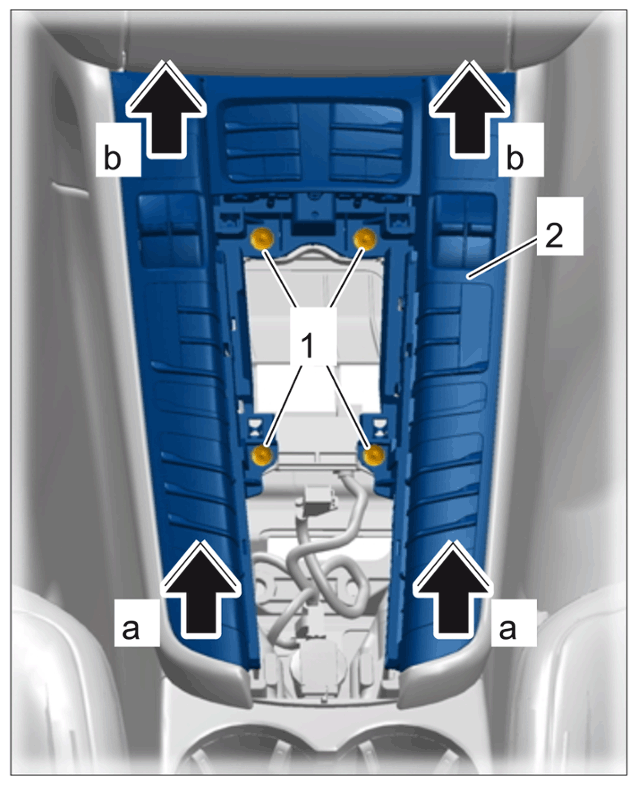

G15162766Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch console
