Removing Door Warning Light

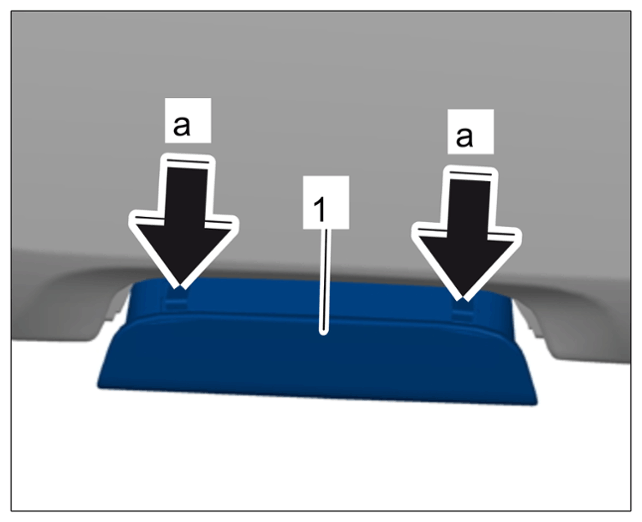

  1. Release door warning light -1-  using a small screwdriver -arrows a-  and pull it out of the door panel horizontally.
    G15162761Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Door warning light

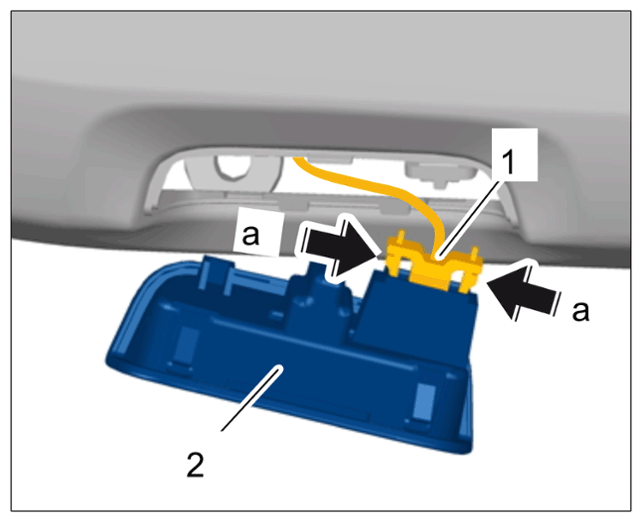

  2. Release electric plug connection -1- (-arrows a-1)  and pull it off the door warning light -2-  .
    G15162762Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
