58 Rear Door, Central Locking -- 95B - MACAN (95B)
>>
5826 Latch Striker
>>
WM, 582619 - Removing And Installing Striker Pin
>>
Notes
WM, 582619 - Removing And Installing Striker Pin: Notes
Technical values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

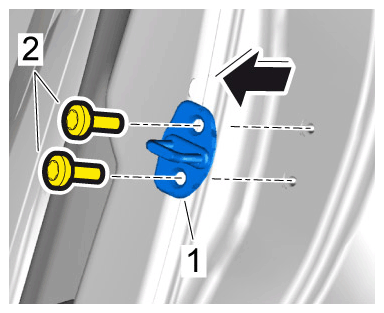

Screws securing lock peg to body
Item 2
Tightening torque
25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lock peg (striker pin)
