Technical Values

Location	Description	Type	Basic value
Fastening nut securing positive cable to power distributor (M6)	Item 1	Tightening torque	7.5 Nm (5.5 ftlb.)

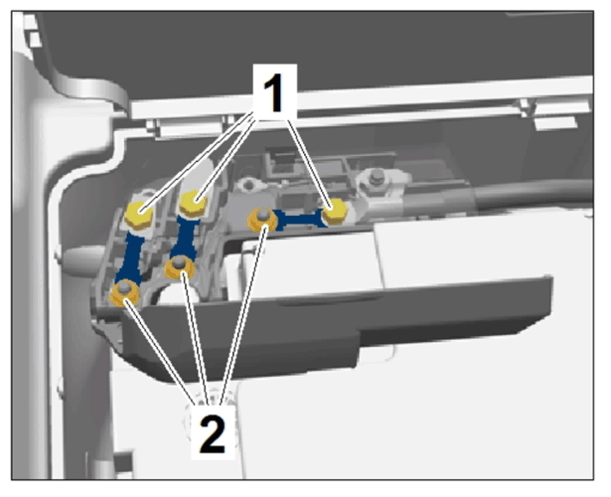

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positive cable on power distributor
Fastening nut securing fuse element to power distributor (M6)	Item 2	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positive cable on power distributor
Fastening nut securing terminal clamp to battery terminal (M6)	Item 2	Tightening torque	5 Nm (3.5 ftlb.)

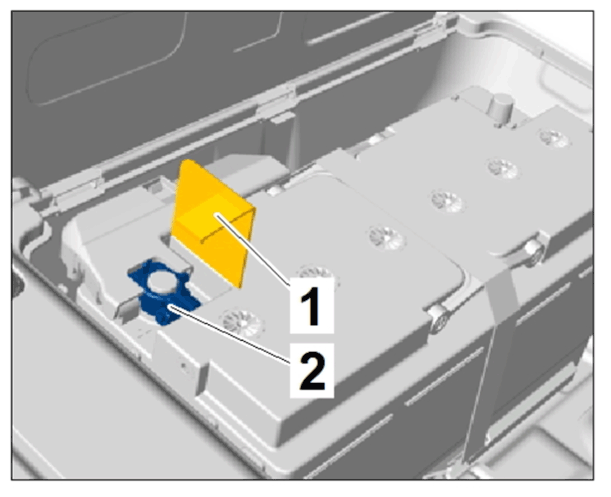

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Terminal clamp on positive terminal
