Technical Values

Location	Description	Type	Basic value

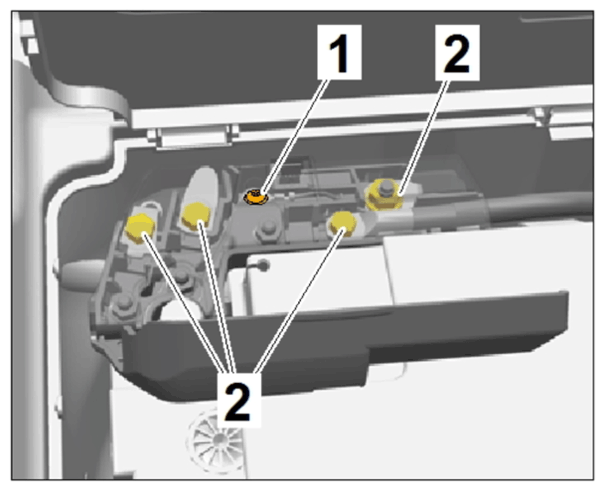

Fastening screw securing positive cable to power distributor	Item 1	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positive cables
M6 fastening nut securing positive cable to power distributor	Item 2	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positive cables
M8 fastening nut securing positive cable to power distributor	Item 2	Tightening torque	16 Nm (12 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positive cables
Terminal clamp to battery terminal	M6 nut	Tightening torque	6 Nm (4.5 ftlb.)
