Removing Power Distributor

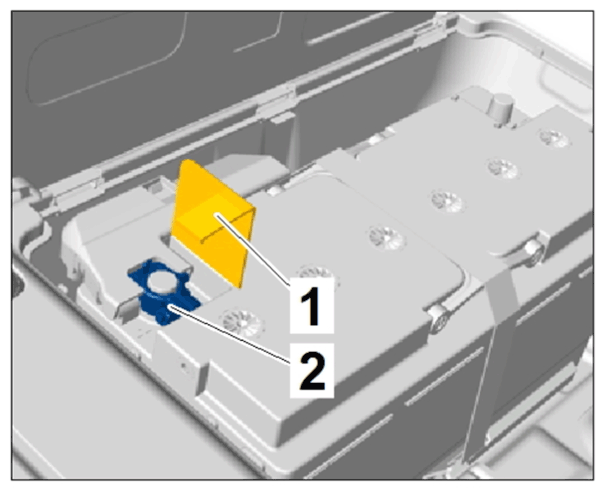

1. Open cover -1-  on the positive terminal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

2. Loosen fastening nut and remove terminal clamp -2-  with power distributor from the positive terminal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Terminal clamp on positive terminal

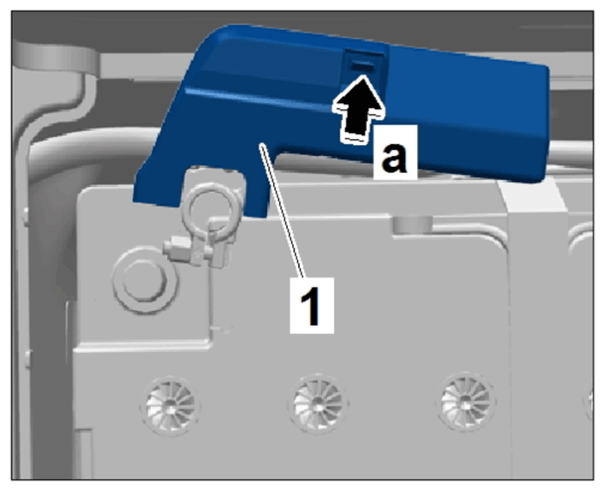

3. Release cover on power distributor -1-  (-arrow a-  ) and fold it up towards the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on power distributor

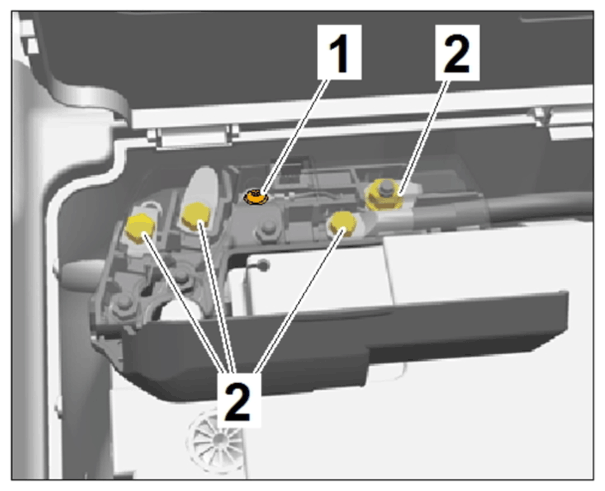

4. Unscrew fastening screw -1-  and remove electric line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric lines

5. Unscrew fastening nuts -2-  and remove ground lines.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric lines

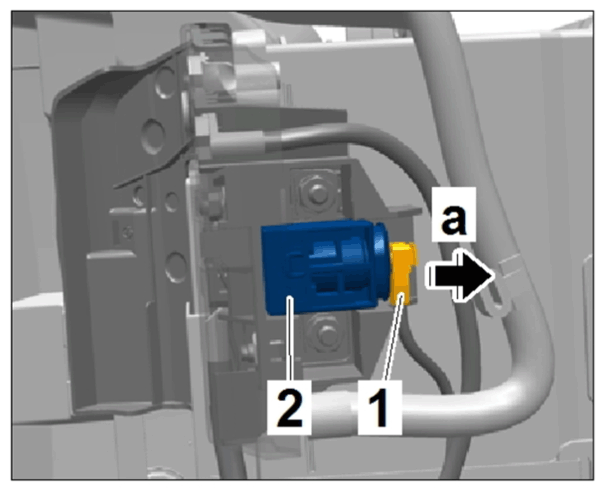

6. Lift the power distributor and release and disconnect electric plug connection -1-  on the cutoff relay -2-  (-arrow a-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on cutoff relay
