Installing Power Distributor

1. Installation is performed in reverse order. Pay particular attention to the following:

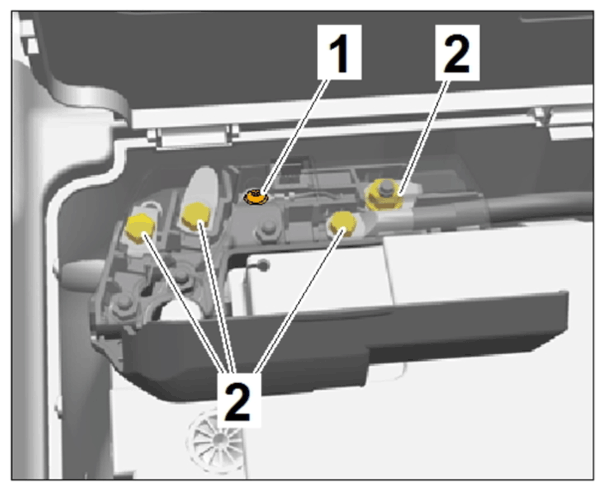

Tighten M6 fastening nuts -2-  securing electric lines to power distributor to > Tightening - torque 7.5 Nm (5.5 ftlb.)  .

Tighten M8 fastening nut -2-  securing electric line to power distributor to > Tightening - torque 16 Nm (12 ftlb.)  .

Tighten fastening screw -1-  securing electric line to power distributor to > Tightening - torque 7.5 Nm (5.5 ftlb.)  .

Tighten terminal clamp on positive terminal to > Tightening - torque 6 Nm (4.5 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric lines
