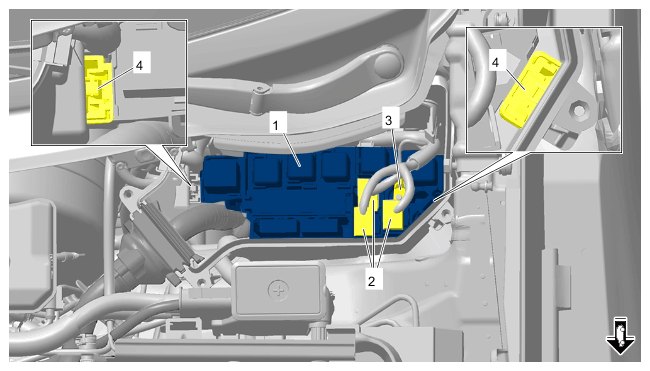

| Fastening nut securing positive cable to fuse box in cowl panel |
Item 3 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fuse box |

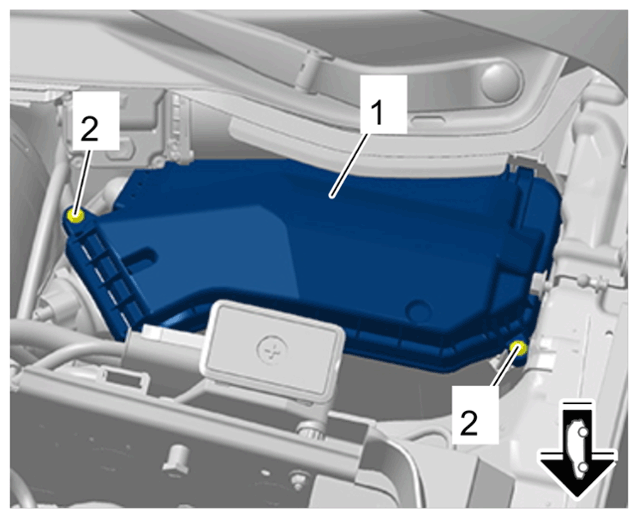

| Fastening screws securing cover to fuse box in cowl panel |
Item 2 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fuse box cover |
