Loosening Fuse Box In The Luggage Compartment

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

1. Screw off fastening nut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

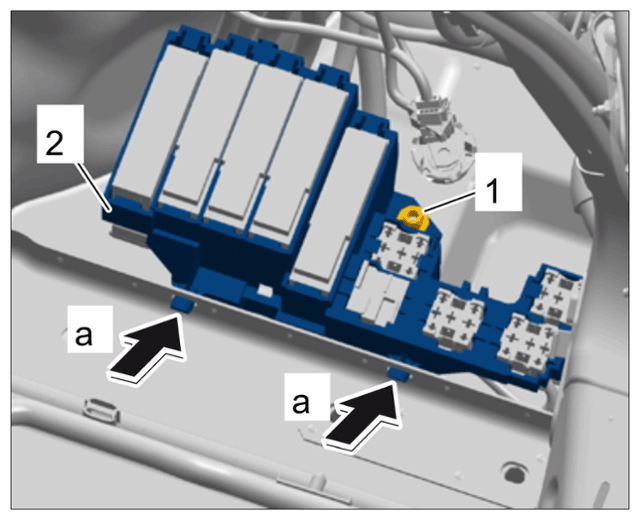

   Fuse box in luggage compartment

2. Pull the fuse box -2-  to the right and out of the openings on the longitudinal member -arrows a-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuse box in luggage compartment
