Loosening Fuse Box In The Dashboard

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

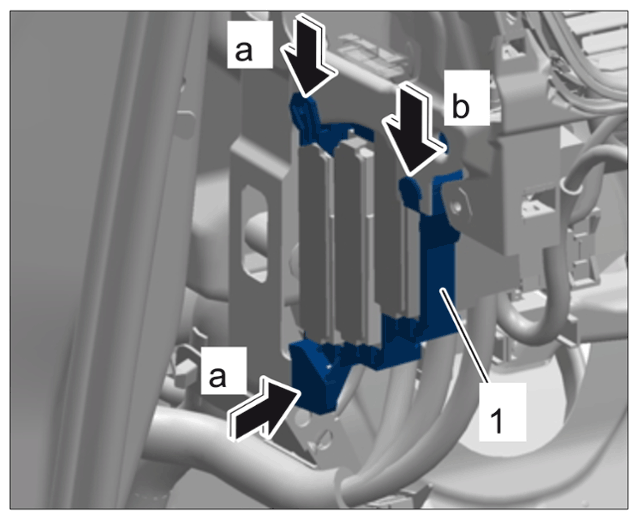

1. Disengage fuse box -1-  using a screwdriver -arrow a-  and pull it down and out of the dashboard -arrow a-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuse box in dashboard
