Loosening Fuse Box In The Cowl Panel

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

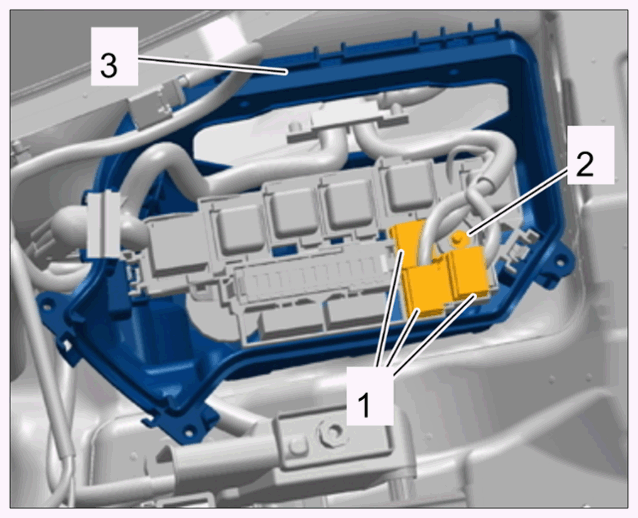

1. Release and unplug electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Screw off fastening nut -2-  and remove positive cable from the fuse box -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

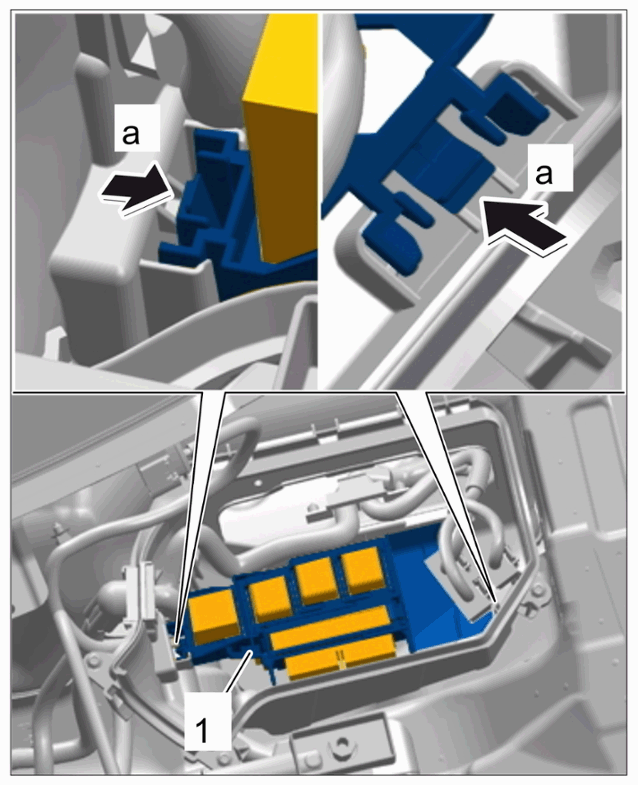

3. Release fuse box -1-  at the left and right -arrows a-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuse box
