Loosen Relay Carrier

Information

• The number of plug connections and relays can vary depending on equipment.
• The illustrations for removal and installation are shown only on one equipment variant and may differ from the actual equipment variant.

1. Unscrew screw securing relay carrier to air guide.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

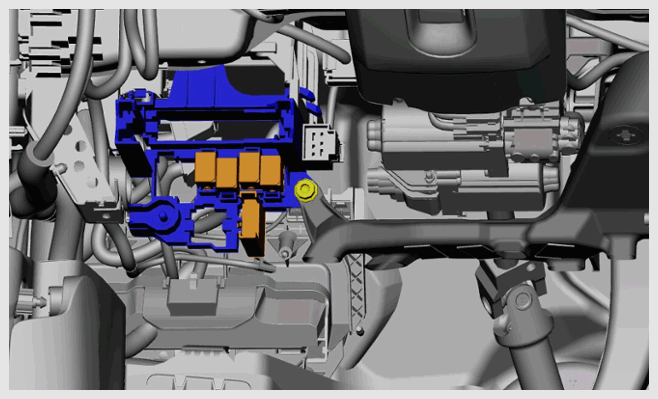

   Screw on relay carrier

2. Loosen left side relay carrier.
   1. 2.1 Unclip relay carrier at the top left side.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

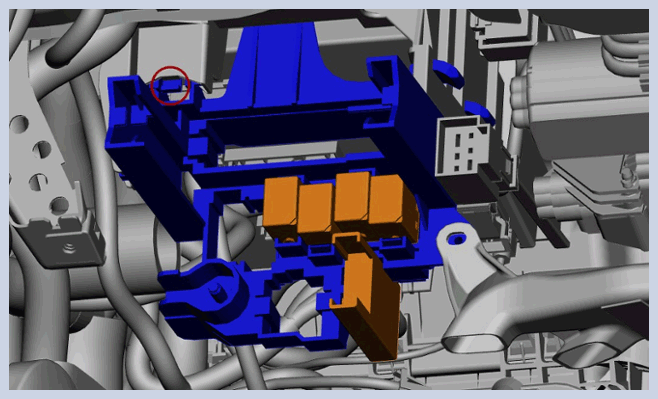

      Mounting for relay carrier, top left

   2. 2.2 Pull the left side of the relay carrier down slightly and disengage it from the guide.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

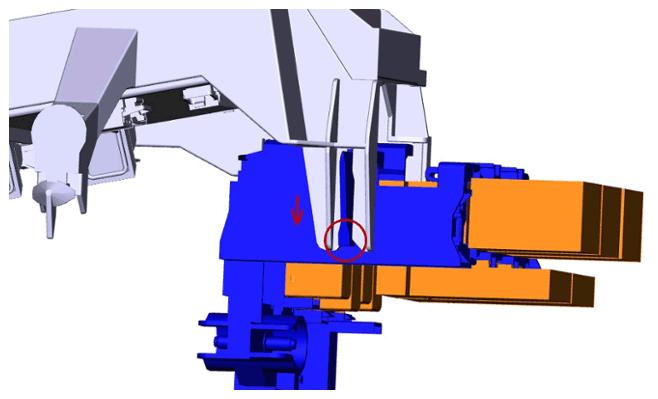

   Relay carrier guide, left

3. Guide right side of relay carrier out of the holder and pull relay carrier down out of the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

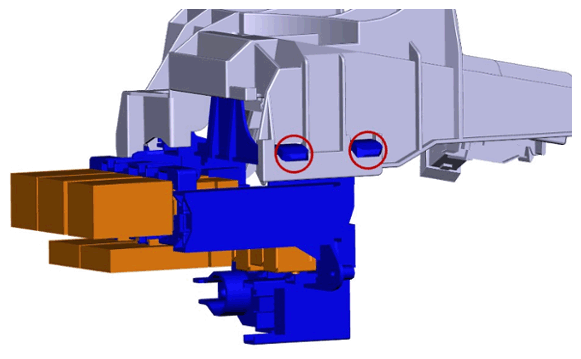

Right side relay carrier
