Removing Wire Harness For Slide/Tilt Sunroof

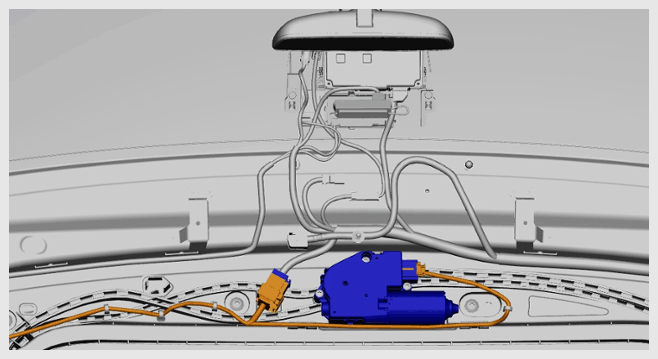

1. Release and disconnect front electric plug connections.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections, front

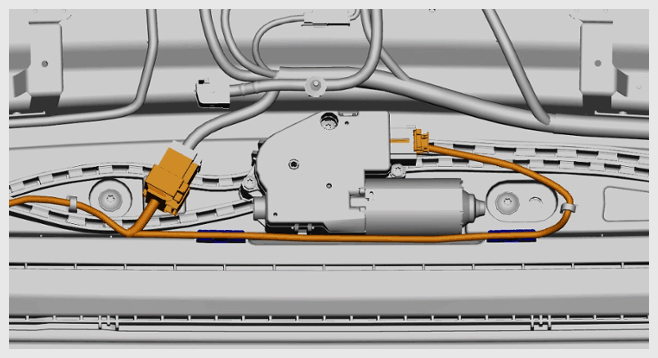

2. Push out front clips using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front clips

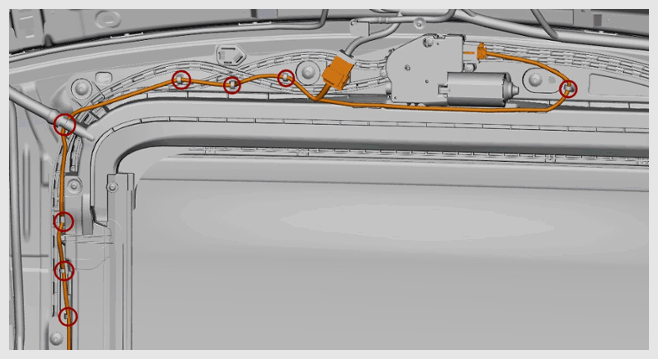

3. Unclip slide/tilt sunroof wire harness from the guides at the front.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front guides

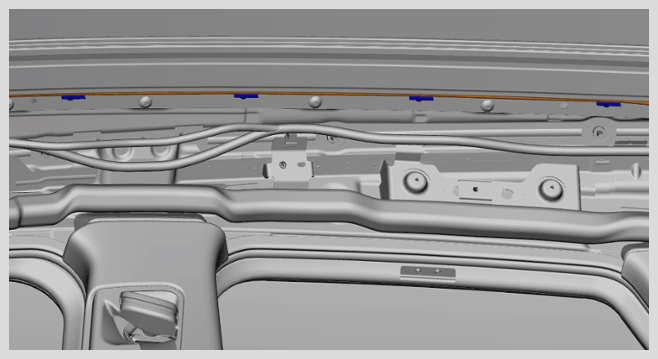

4. Push out centre clips using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre clips

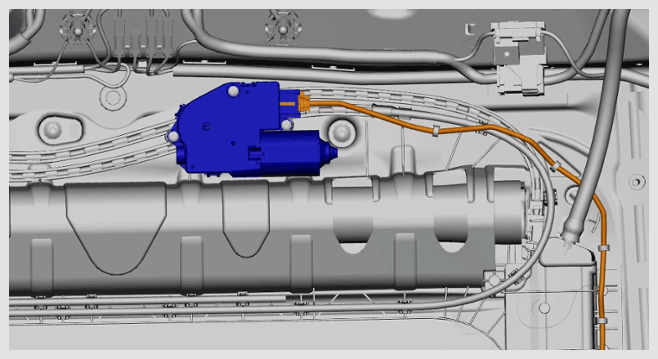

5. Release and disconnect rear electric plug connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection, rear

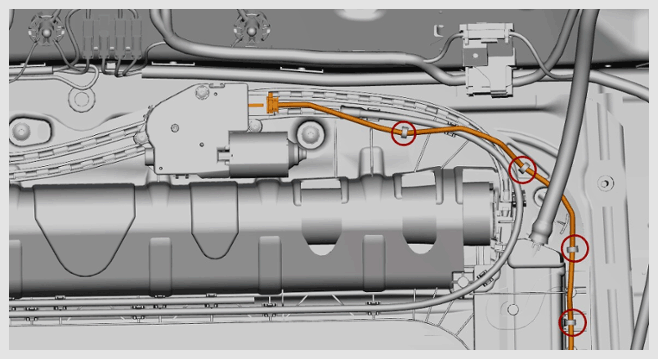

6. Unclip slide/tilt sunroof wire harness from the guides at the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear guides
