Adjusting Wire Harness For Slide/Tilt Sunroof

Information

If a new slide/sliding roof was installed, the first fixing clip at the centre of the wiring harness may need to be re-positioned.

Before installing the wire harness, check the position of the centre fixing clips and change it if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

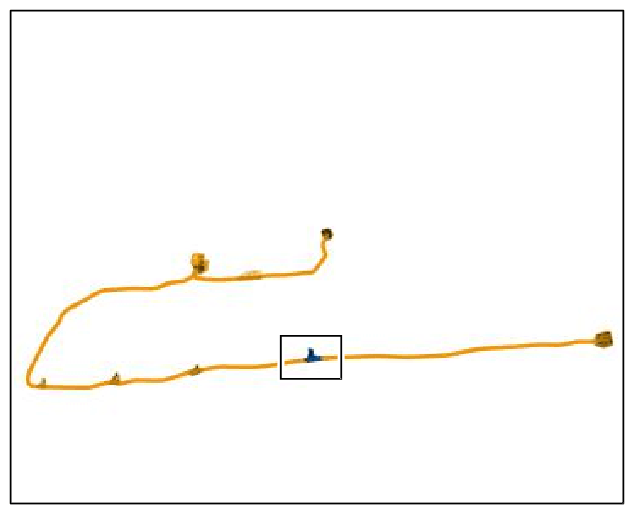

Re-position the fixing clip for the slide/tilt roof wire harness

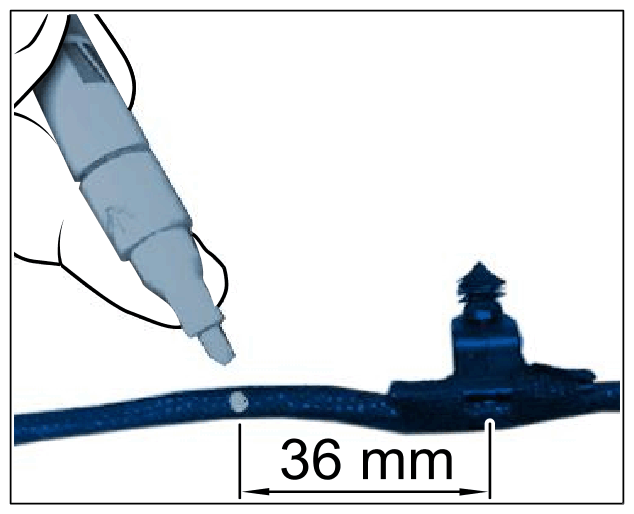

1. Mark the new position of the fixing clip.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   new fixing clip position

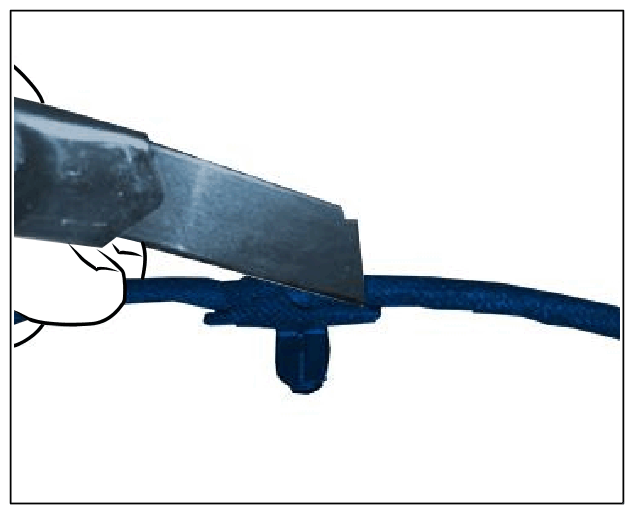

2. Carefully open the fabric tape for the fixing clip using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Carefully cutting the fabric tape

3. Remove the fixing clip and fabric tape residue.

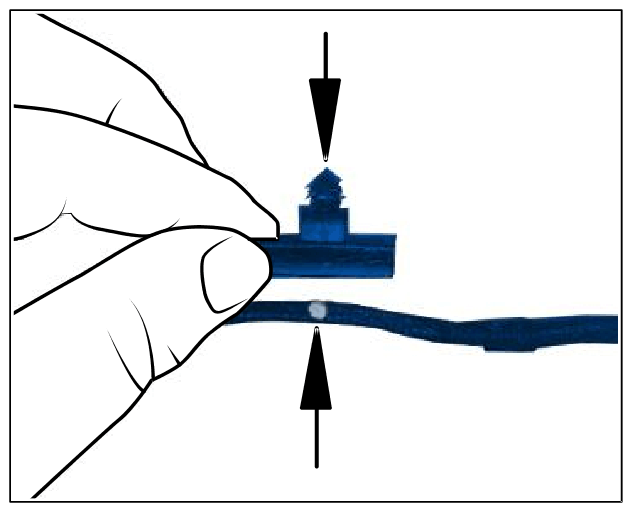

4. Set the fixing clip to the previously applied new marking.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Setting the fixing clip at the marking

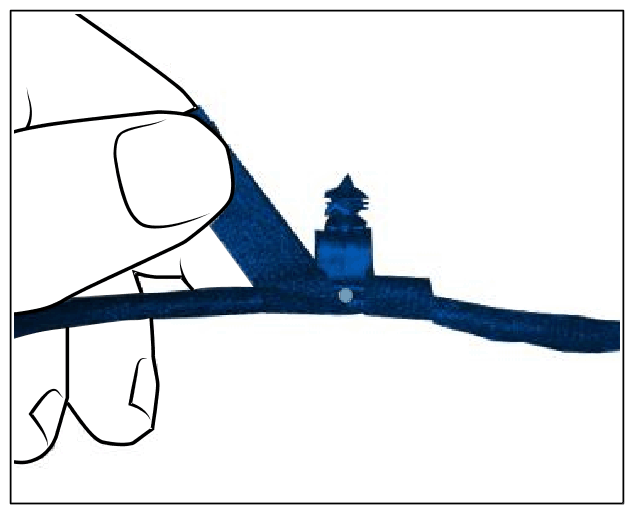

5. Secure the fixing clip with fabric tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing the fixing clip
