Removing And Installing Optical Contacts On Connector Side

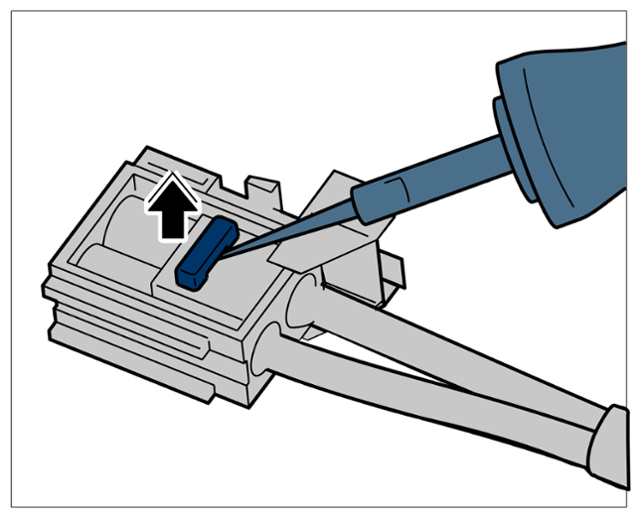

  1. Use > VAS 1978/35-33 - release tool set  to open the secondary lock. Insert the tool into the opening provided for this purpose and lift the locking mechanism -Arrow-  . The locking mechanism engages in the upper position.
    G15163130Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Secondary lock - optical contacts

  2. > VAS 1978/35-33 - Release tool set  must be positioned on the primary lock. Then lift the locking mechanism.
    G15163131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Primary lock - optical contacts

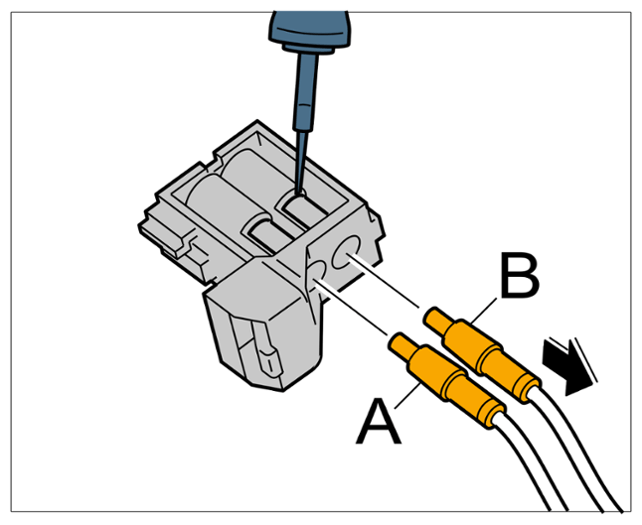

  3. Carefully pull on the optical waveguides -A and B-  in -direction of arrow-  . If it is not possible to pull out the optical waveguide, check again that the secondary locking mechanism is completely released and that the primary locking mechanism is raised sufficiently.
    G15163132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Primary lock - optical contacts

    A Optical contact, grey
    B Optical contact, black
  4. Visually check the locks, connector housing and contacts for damage. Replace damaged parts if necessary.
