Disconnecting Optical Waveguide (PCM To Loudspeaker Booster)

Information

Observe the general information on optical waveguides.

> General - information on optical waveguides - MOST bus

Information

Before routing a new optical waveguide:

• Visually check the locks, connector housing and contacts for damage.
• Replace damaged parts if necessary.

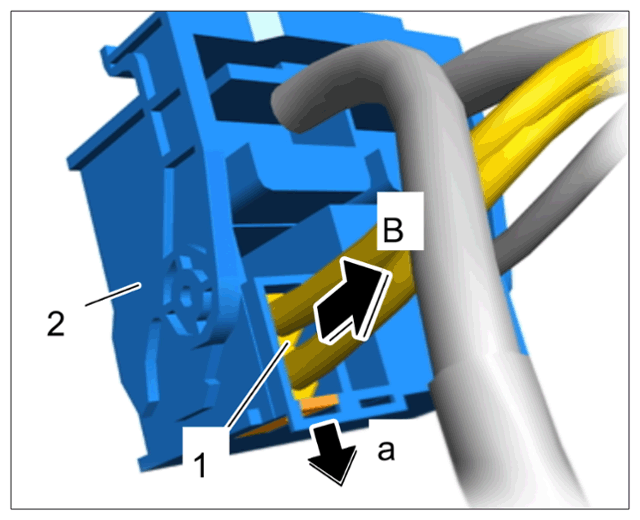

1. Release plug connection -1-  for optical waveguides at the compact connector -2-  for the PCM display and operator control unit -arrow B-  and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection for PCM compact connector

2. Cut off optical contacts of the damaged optical waveguide, isolate it and tie it to the main wire harness.
