Installing Optical Contacts On Connector Side

Remove the dust boot right before plugging.

Check the proper condition of the contacts.

1. Push optical contacts -A and B-  into the connectors until they engage securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

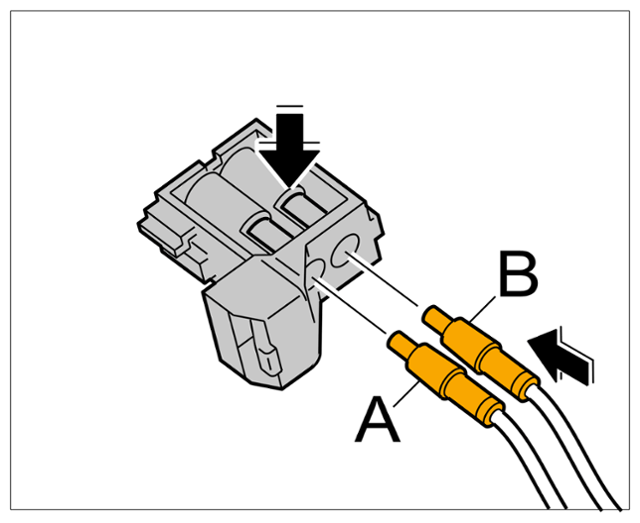

   Primary lock - optical contacts

   A	Optical contact, grey
   B	Optical contact, black

2. Close the secondary lock -Arrow-  and check that the optical contacts are fitted securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

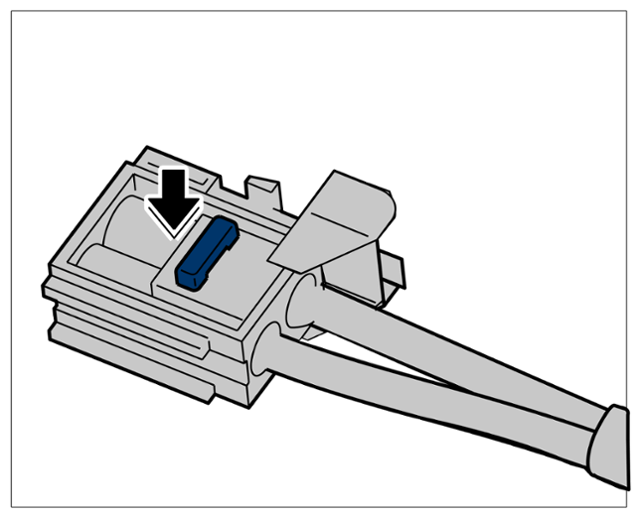

Secondary lock - optical contacts
