Installing Wiring For Electrically Adjustable Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

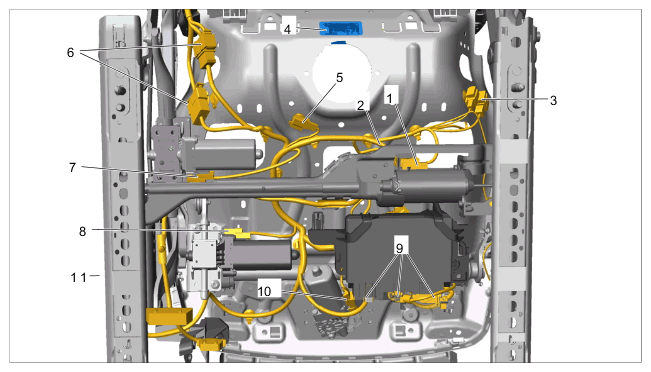

Wiring for electrically adjustable seat

1	Electric plug connection for seat adjustment motor (two connectors)
2	Electric plug connection for heated seats
3	Electric plug connection for seat-belt buckle
4	Electric plug connection for footwell lighting
5	Electric plug connection for backrest heating
6	Electric plug connection for wire harness for backrest (two connectors)
7	Electric plug connection for motor for rear vertical adjustment
8	Electric plug connection for motor for front vertical adjustment
9	Electric plug connection for control unit for memory seat adjustment (three connectors)
10	Electric plug connection for motor for seat fore-and-aft adjustment
11	Electric plug connection for motor for seat adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

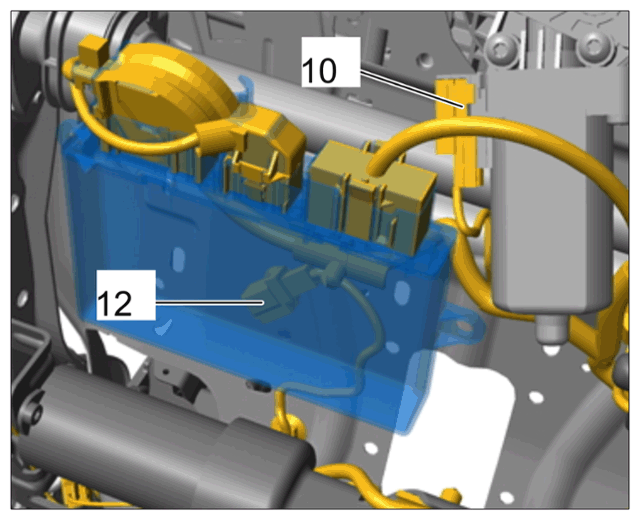

Connector under control unit for memory seat adjustment

10	Electric plug connection for motor for seat fore-and-aft adjustment
12	Electric plug connection for seat occupancy detection

First lay the wire harness loosely in the seat, ensuring that it is positioned correctly.
Press in fixing clips for the wire harness in areas -1 - 5- and -6 + 7- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

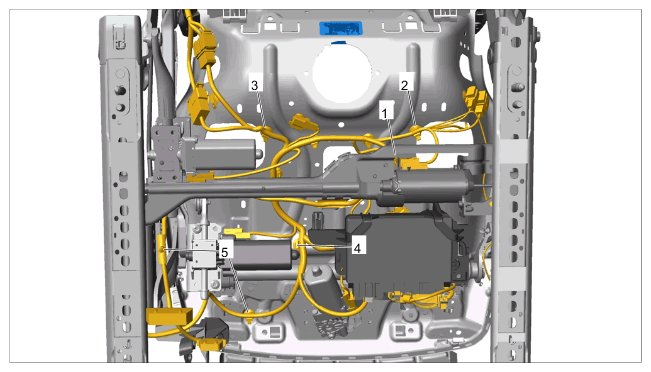

Fastening points for seat frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

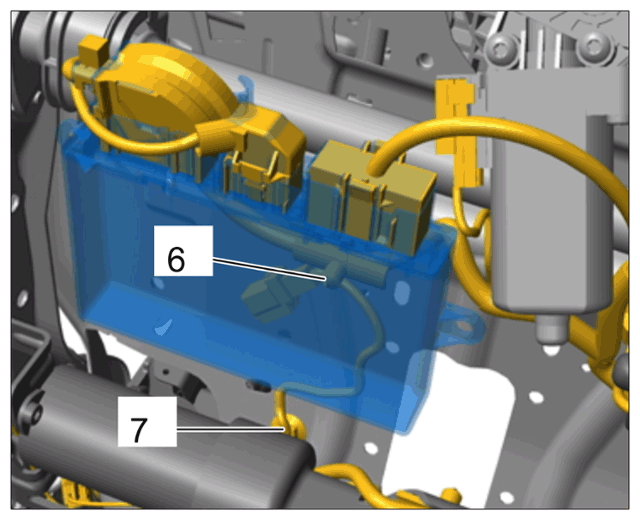

Fastening points under control unit
Press in fixing clips for electric plug connections -2, 3, 4, 5- and -12- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening points for seat frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector under control unit for memory seat adjustment
Plug in electric plug connections -1, 11- and -12- until the connector engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiring for electrically adjustable seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector under control unit for memory seat adjustment
Fit footwell light in seat frame.
Fit the bracket into the cut-outs on the seat frame and screw in fastening screw on bracket for control unit for memory seat adjustment and seat-surface extension.
