Installing Wiring For Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

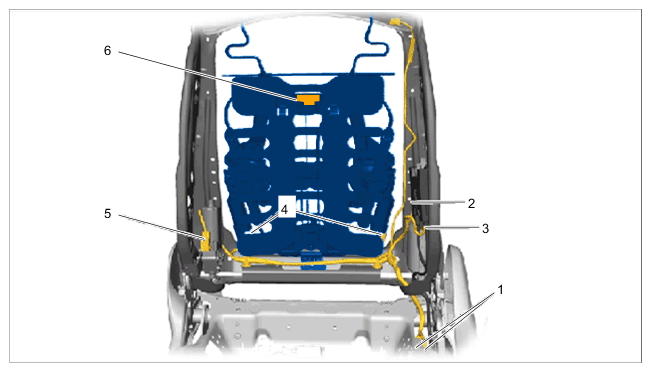

Wire harness for backrest

1	Two connectors for backrest wire harness
2	Connector for motor for air cushion
3	Connector for control valve for air cushion
4	Two connectors for lumbar support
5	Connector for motor for backrest adjustment
6	Connector for motor for seat ventilation

First fit the wire harness loosely in the backrest, ensuring that it is positioned correctly.
Clip in clips -1- on the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

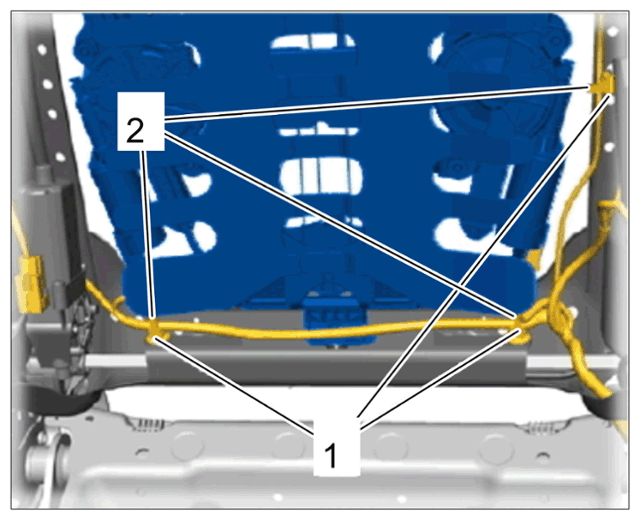

Mounting points
Fit tie-wrap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting points
Plug in electric plug connections -1 to 6- until the connectors engage securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for backrest
Screw in two fastening screws for the backrest air cushion.
