Technical Values

Location	Description	Type	Basic value

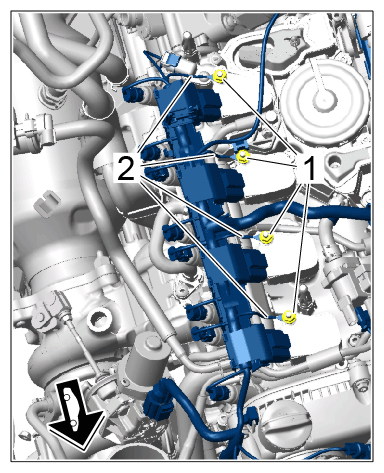

Fastening screws for ground lines for cylinder head	Item 1	Tightening torque	6.5 Nm (4.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground lines

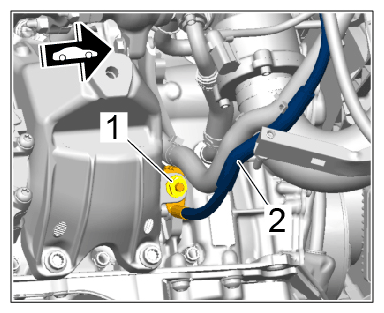

Fastening nut on ground strap for engine support	Item 1	Tightening torque	12 Nm (9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground strap
Fastening screw for engine support		Tightening torque	40 Nm (30 ftlb.)
Fastening screw for heat shield		Tightening torque	10 Nm (7.5 ftlb.)
