Subsequent Work

1. Install belt tensioner.

   > 137319 - REMOVING AND INSTALLING BELT TENSIONER (R4)

2. Install the starter.

   > 276019 - REMOVING AND INSTALLING STARTER (R4)

3. Install the generator.

   > 272219 - REMOVING AND INSTALLING GENERATOR (R4)

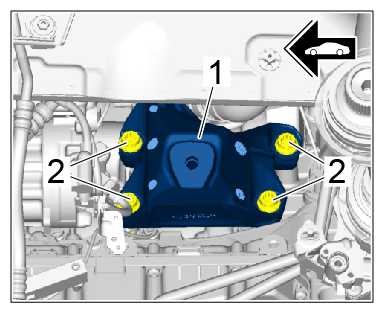

4. Install right engine support -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right engine support

   1. 4.1 Position right engine support -1-  .
   2. 4.2 Tighten fastening screws -2-  to > Tightening - torque 40 Nm (30 ftlb.)  until secure.

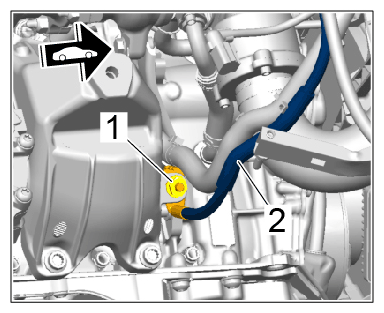

5. Fit fastening nut -1-  for ground strap -2-  and tighten to > Tightening - torque 12 Nm (9 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground strap

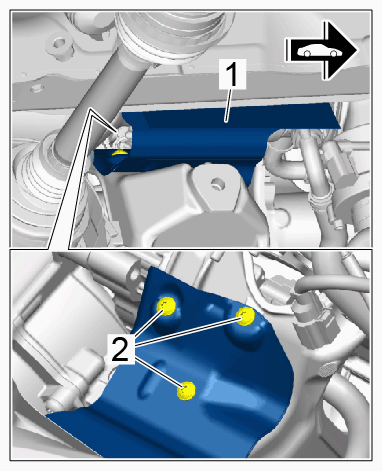

6. Install heat protection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heat protection

   1. 6.1 Position heat protection -1-  .
   2. 6.2 Fit fastening screws -2-  and tighten to > Tightening - torque 10 Nm (7.5 ftlb.)  .

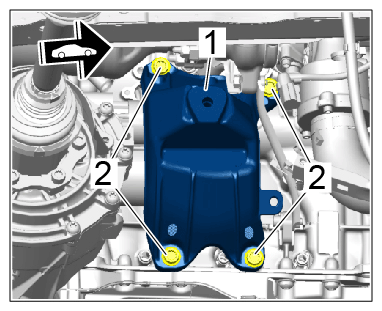

7. Install left engine support -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Left engine support

   1. 7.1 Position left engine support with supporting mount -1-  .
   2. 7.2 Fit fastening screws -2-  and tighten to > Tightening - torque 40 Nm (30 ftlb.)  .
8. Install engine mount.

   > Refer to appropriate service information

9. Install front axle.

   > 400619 - REMOVING AND INSTALLING FRONT-AXLE CARRIER

10. Install air cleaner housing.

> 242519 - REMOVING AND INSTALLING AIR CLEANER HOUSING (R4)
