Preliminary Work

1. Remove air cleaner housing.

   > 242519 - REMOVING AND INSTALLING AIR CLEANER HOUSING (R4)

   Information

   The engine must be supported.

2. Remove front axle.

   > 400619 - REMOVING AND INSTALLING FRONT-AXLE CARRIER

3. Remove engine mount.

   > Refer to appropriate service information

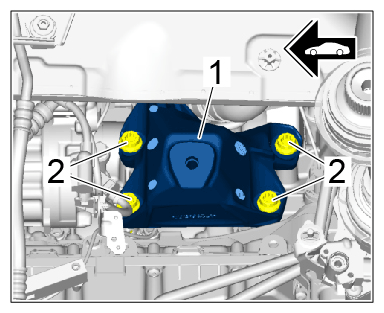

4. Remove left engine support -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Left engine support

   1. 4.1 Unscrew fastening screws -2-  .
   2. 4.2 Remove left engine support -1-  with supporting mount.

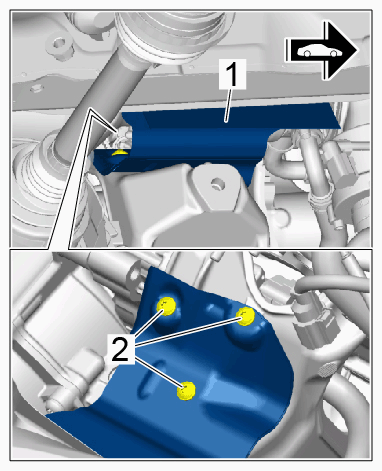

5. Remove heat protection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heat protection

   1. 5.1 Unscrew fastening screws -2-  .
   2. 5.2 Remove heat protection -1-  .

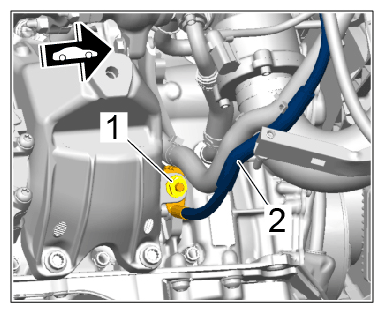

6. Unscrew fastening nut -1-  and remove ground strap -2-  from right engine support.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground strap

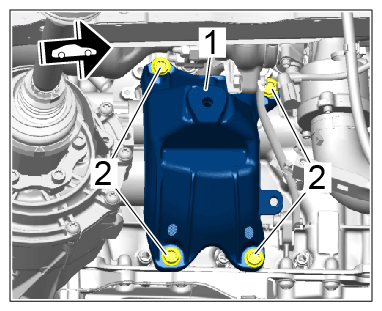

7. Remove right engine support -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right engine support

   1. 7.1 Unscrew fastening screws -2-  .
   2. 7.2 Remove right engine support.
8. Remove the generator.

   > 272219 - REMOVING AND INSTALLING GENERATOR (R4)

9. Remove the starter.

   > 276019 - REMOVING AND INSTALLING STARTER (R4)

10. Remove belt tensioner.

> 137319 - REMOVING AND INSTALLING BELT TENSIONER (R4)
