| Screw |
Screw on transmission support |
Tightening torque |
70 Nm (52 ftlb.) (51.6 ftlb.) |
|
|
| Fastening nuts M6 B+ lines to jump-start point |
Item 3 |
Tightening torque |
7.5 Nm (5.5 ftlb.) (5.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

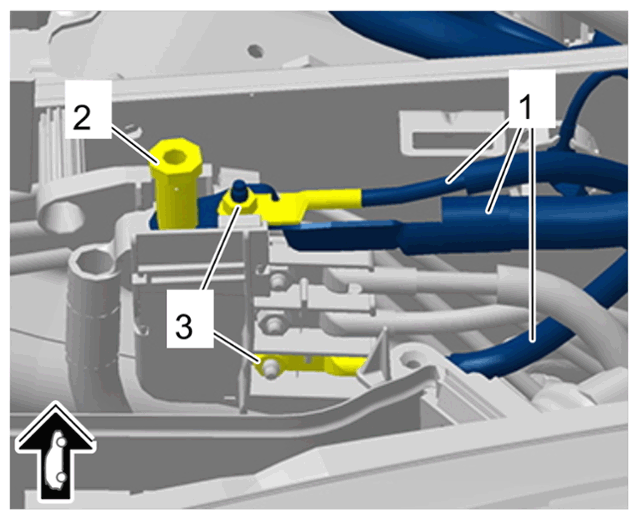

B+ lines next to fuse box |
