Removing Engine Wire Harness For Body

Information

The plug connections and number of fixing clips may differ depending on the country and equipment.

Removing engine wire harness for body in plenum panel area

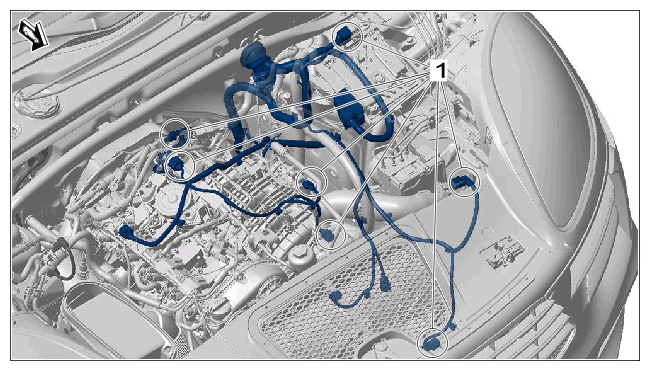

Fig 1: Wire Harness Water Tank Component Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

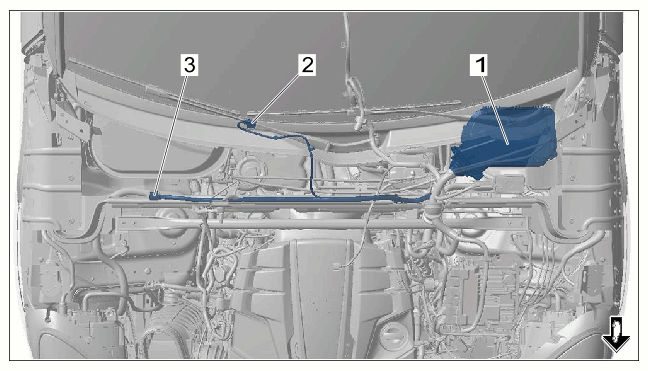

Overview wire harness water tank

1. Remove position of -1-  cover -1-  for E-box/relay carrier.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

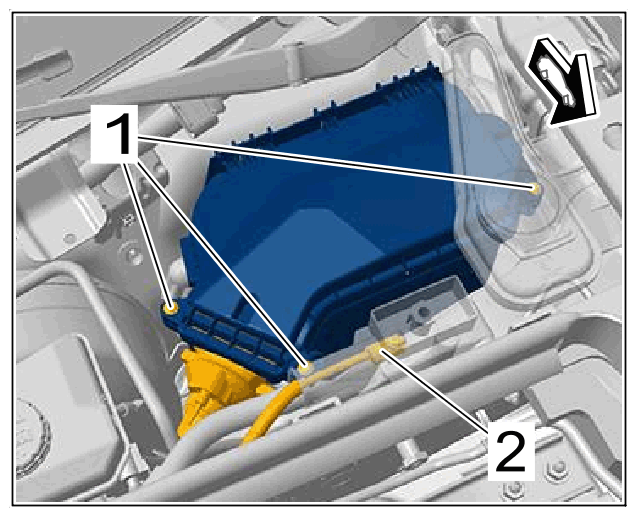

   E-box cover

   1. 1.1 Unscrew and remove fastening screws -1-  .
   2. 1.2 Open E-box cover and remove it.
   3. 1.3 Unscrewing fastening screw -2-  for B+ line.
2. Release and disconnect electric plug -1-  on the relay carrier.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

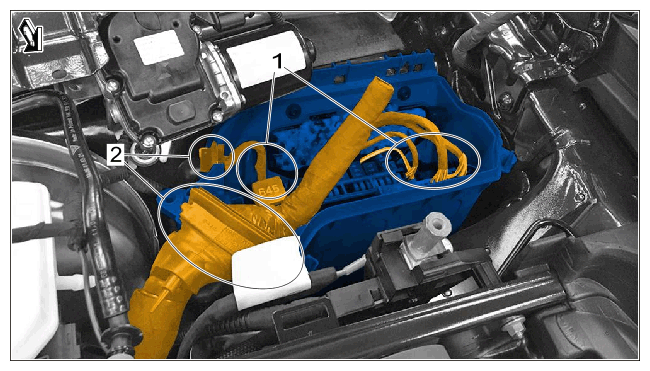

   Removing relay carrier

3. Pull grommets -2-  for the wire harness with the relay carrier up out of the E-box.
4. Release and unplug position of -2-  plug connection for -1-  windscreen.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

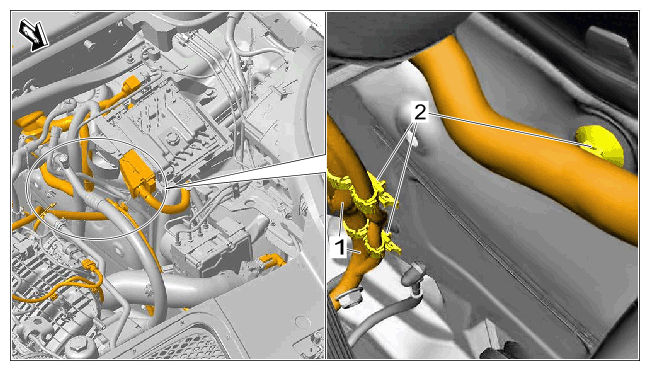

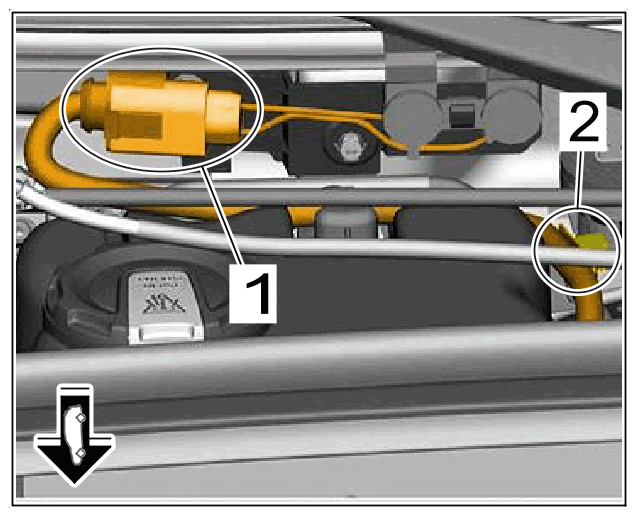

   Plug connection for windscreen

5. Unclip two retaining clips -2-  for the windscreen line using a plastic spatula.
6. Release and unplug position -3-  , B+ -1-  plug connection in the plenum panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection B+

7. Unclip three retaining clips -2-  for the B+ line on the body using a plastic scraper.

   Engine wire harness for body in top left of engine compartment area

8. Release and unplug all electric connectors -1-  that are accessible from above.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric connectors

9. Approx. Unclip 13 retaining clips for the engine line at the top using a plastic scraper.

   Engine wire harness body to transmission.

10. Open line bracket -1-  and remove line.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine compartment wire harness to transmission

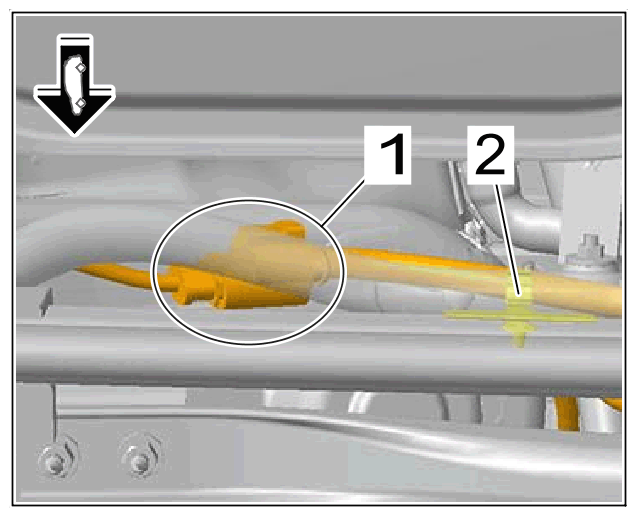

11. Unclip four retaining clips -2-  using a plastic scraper.

    Remove engine wire harness for body in the transmission area.

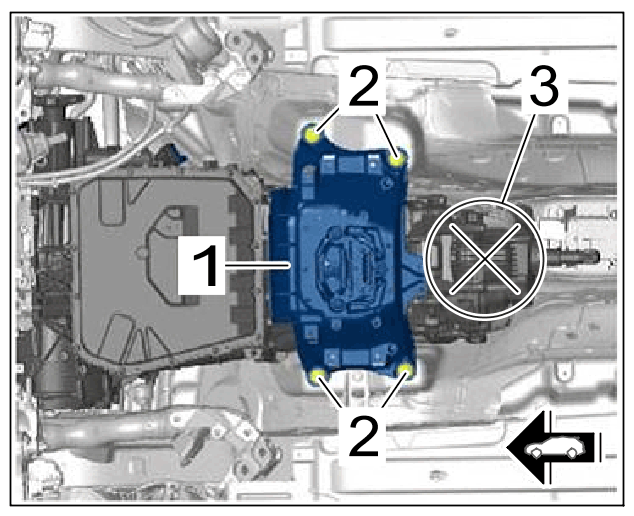

12. Before removing the transmission support, use a > VAS 6931 - transmission and aggregate jack  and a soft base (e.g. Styrodur) to support the rear part of the transmission -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission support jacking point

13. Loosen transmission support -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission support

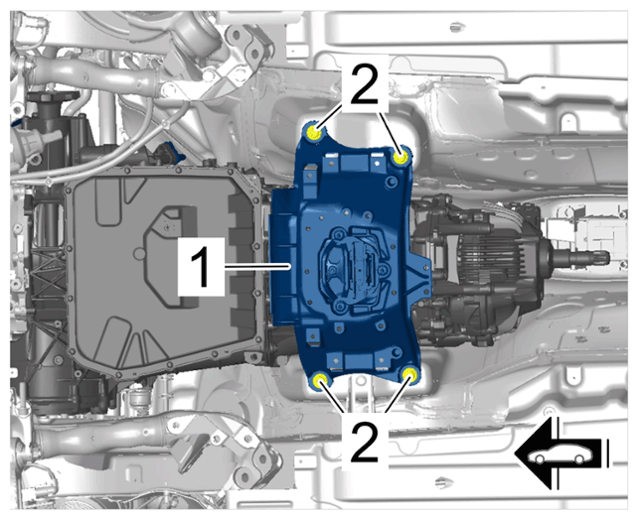

    1. 13.1 Mark the position of the transmission support -1-  for re-installation.
    2. 13.2 Unscrew screws on transmission support -2-  .

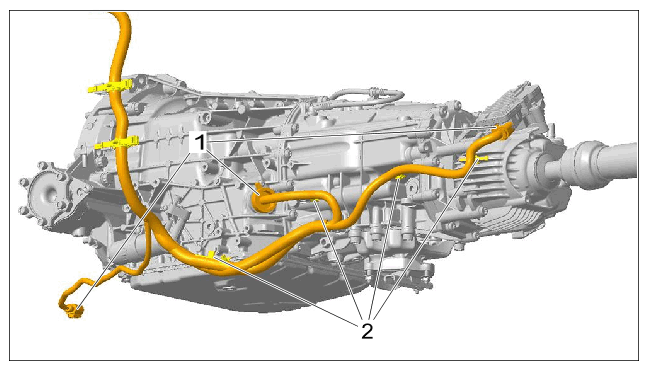

14. Releasing and unplugging electric connectors -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness in transmission area

15. Unclip four retaining clips -2-  using a plastic scraper and open the tie-wrap.
16. Re-install transmission support and relieve the load on the transmission.

    Carefully remove the engine wire harness to body by lifting it up and out of the engine compartment.

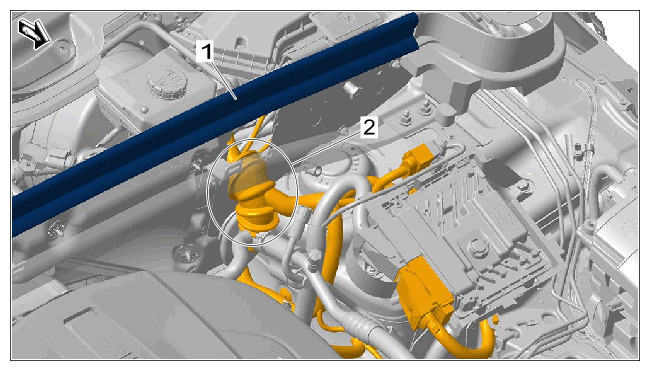

17. Pull piping -1-  up and lift grommet -2-  for engine wire harness at the body upwards.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine wire harness, body

18. Carefully remove engine wire harness from the engine compartment.
