Installing Engine Wire Harness For Body
- Install in reverse order.
Electric plug connections must engage perceptibly.
- Before removing the transmission support, use a >
VAS 6931 - transmission and aggregate jack
and a soft base (e.g. Styrodur) to support the rear part of the transmission -3-
.
Transmission support jacking point
- Remove transmission support and route engine wire harness for body on the transmission.
- Secure transmission support -1- .

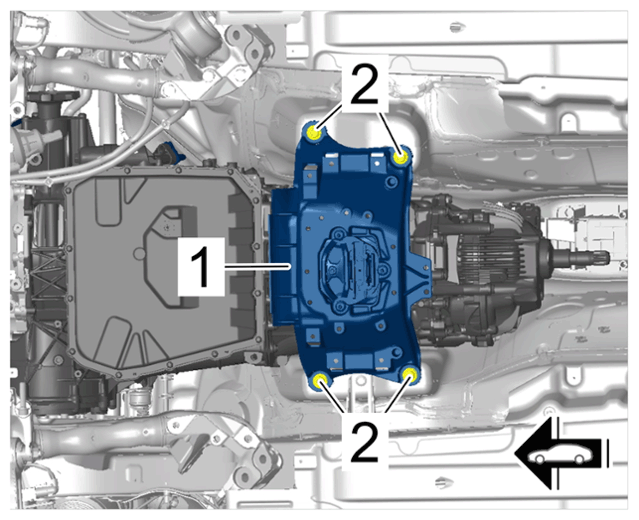

Transmission support
- 4.1 Position transmission support -1- according to the markings made during removal.
- 4.2 Screw in and tighten screws on transmission support -2- .
> Tightening - torque 70 Nm (52 ftlb.) (51.6 ftlb.)
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

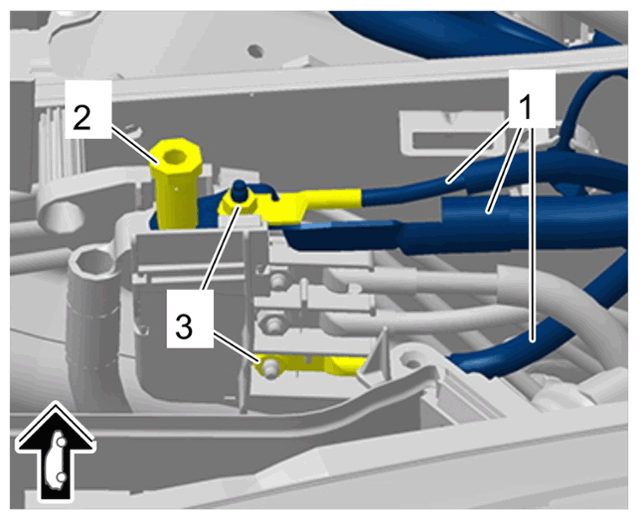

| Fastening nuts M6 B+ lines to jump-start point | Item 3 | Tightening torque | 7.5 Nm (5.5 ftlb.) (5.5 ftlb.) | |
|
B+ lines next to fuse box |
||||
