Technical Values

Location	Description	Type	Basic value

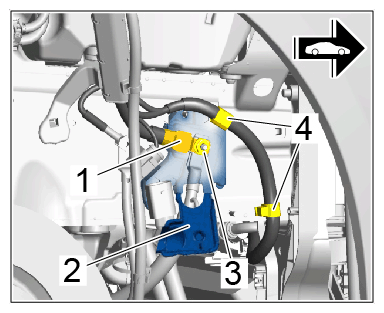

Fastening nut securing B+ positive cable to potential distributor on longitudinal member	Item 3	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Potential distributor

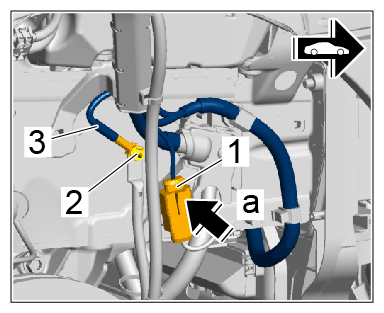

Fastening nut securing ground line to longitudinal member	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection

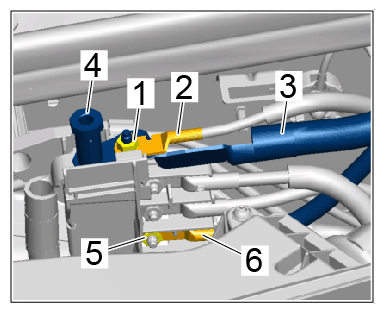

Fastening nut securing positive cable to jump-start point	Item 5	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Jump-start point
Connection terminal for B+ positive cables to jump-start point	Item 4	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Jump-start point
Fastening nut securing positive cable to B+ positive cable	Item 1	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Jump-start point
