Removing Battery-Starter Wire Harness (From External Power Connection To Starter)

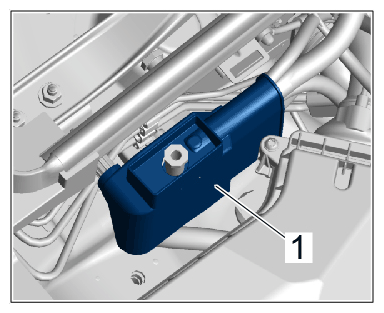

1. Remove cover -1-  at the jump-start point.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Jump-start point

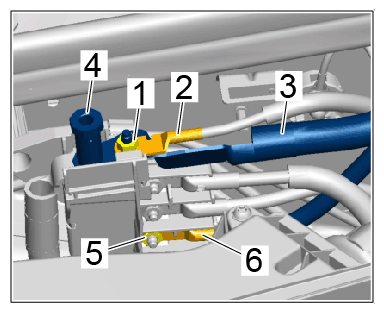

2. Disconnect positive cables at the jump-start point.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Jump-start point

   1. 2.1 Screw off fastening nut -1-  and remove positive cable -2-  from positive cable (B+) -3-  .
   2. 2.2 Unscrew connection terminal -4-  at the jump-start point and remove positive cable (B+) -3-  at the jump-start point.
   3. 2.3 Unscrew fastening nut -5-  for positive cable -6-  at the jump-start point.

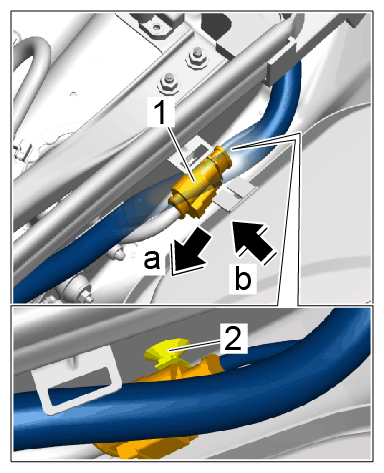

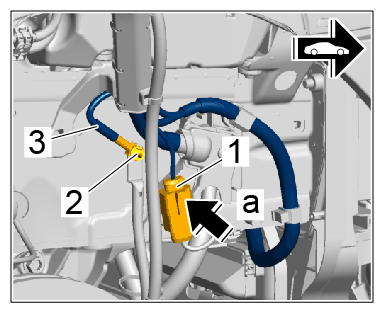

3. Disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

   1. 3.1 Unclip electric plug connection -1-  from retaining clip -2-  .
   2. 3.2 Release primary lock -arrow a-  .
   3. 3.3 Release secondary lock -arrow b-  and disconnect electric plug connection -1-  .

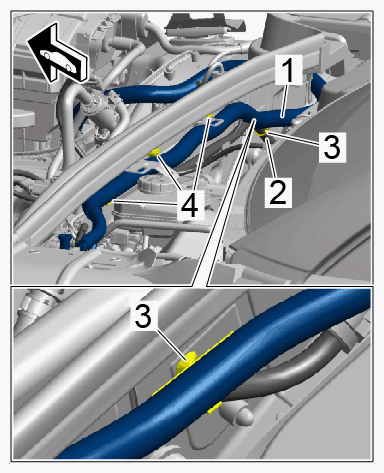

4. Disconnect battery-starter wire harness (from external power connection to starter) -1-  at the cowl panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Battery-starter wire harness (from external power connection to starter)

   1. 4.1 Disconnect engine wire harness -2-  from clip -3-  .
   2. 4.2 Unclip bracket -3-  for wire harness from battery to starter (from external power connection to starter) -1-  at the cowl panel.
   3. 4.3 Unclip bracket -4-  for wire harness from battery to starter (from external power connection to starter) -1-  at the cowl panel.

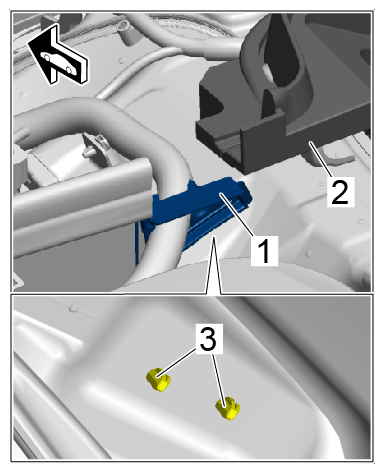

5. Loosen wire harness sleeve -1-  on the cowl panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire sleeve

   1. 5.1 Carefully move seal -2-  to the side.
   2. 5.2 Unclip holder -3-  for wiring sleeve -1-  in the wheel housing at the top right.

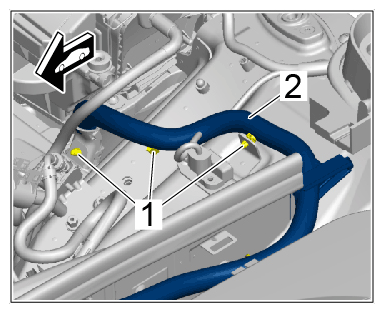

6. Unclip bracket -1-  for wire harness from battery to starter (from external power connection to starter) -2-  at the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Battery-starter wire harness (from external power connection to starter)

   Information

   One or two electric plug connections for the fans must be disconnected, depending on the engine type.

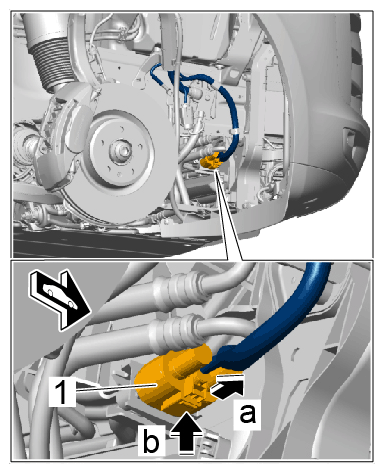

7. Disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for fan

   1. 7.1 Release primary lock -arrow a-  .
   2. 7.2 Press secondary lock -arrow b-  and disconnect electric plug connection -1-  .
8. Release and pull off electric plug connection -1-  (-arrow a-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

9. Screw off fastening nut -2-  and remove ground line -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

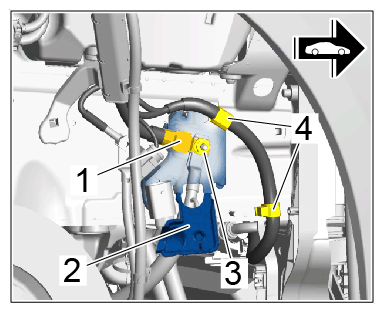

10. Disconnect battery-starter wire harness (from external power connection to starter) -1-  at the potential distributor.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Potential distributor

    1. 10.1 Release cover -2-  on the potential distributor and fold it down.
    2. 10.2 Screw off fastening nut -3-  and remove B+ positive cable from the potential distributor.
    3. 10.3 Open bracket -4-  and remove wire harness from battery to starter (from external power connection to starter) -1-  .

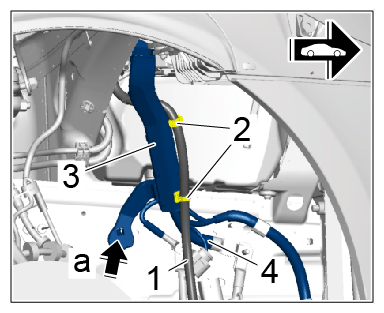

11. Unclip breather hose -1-  from the holders -2-  for the wiring duct -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Battery-starter wire harness (from external power connection to starter)

12. Release wiring duct -3-  (-arrow a-  ) and disengage it by pulling it up out of the longitudinal member.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Battery-starter wire harness (from external power connection to starter)

13. Remove battery-starter wire harness (from external power connection to starter) -4-  by pulling it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery-starter wire harness (from external power connection to starter)
