Removing Front Wire Harness

1. Release and disconnect electric plug connections from front wire harness -4-  .

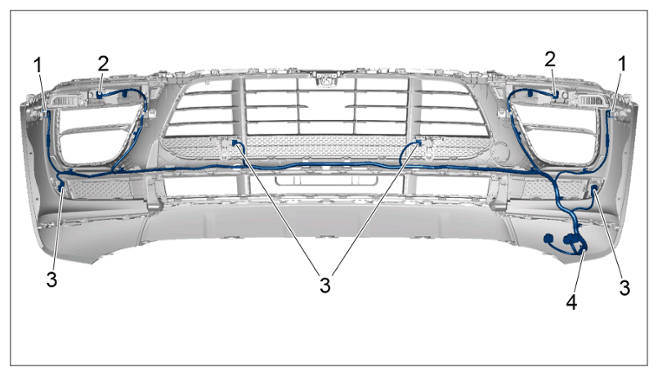

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front wire harness

   1. 1.1 Release and disconnect electric plug connections on the left and right direction indicators -1-  .
   2. 1.2 Release and disconnect electric plug connections on the left and right auxiliary headlights -2-  .
   3. 1.3 Release and disconnect electric plug connections on all ParkAssist sensors -3-  .

   Information

   • Some of the repair illustrations show only one side of the vehicle or a similar component.
   • Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
2. Remove front wire harness -2-  .

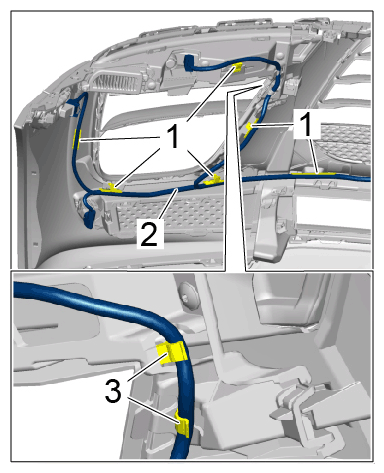

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wire harness

1. 2.1 Detach all holders -1-  for the front wire harness -2-  from the front apron.
2. 2.2 Take front wire harness -2-  out of the holders -3-  and remove front wire harness -2-  .
