Installation Position

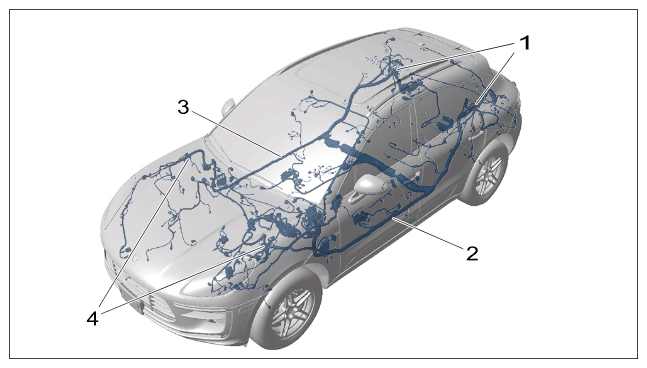

G15162914Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1 Main wire harness in luggage compartment
2 Main wire harness in passenger compartment, left
3 Main wire harness in passenger compartment, right
4 Main wire harness in engine compartment
