Technical Values

Location	Description	Type	Basic value

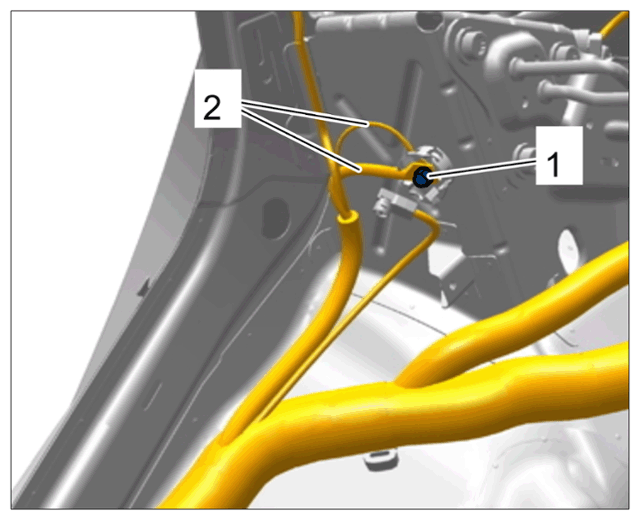

Fastening nut securing ground line to ground pin in body	Position 2	Tightening torque	9 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connections

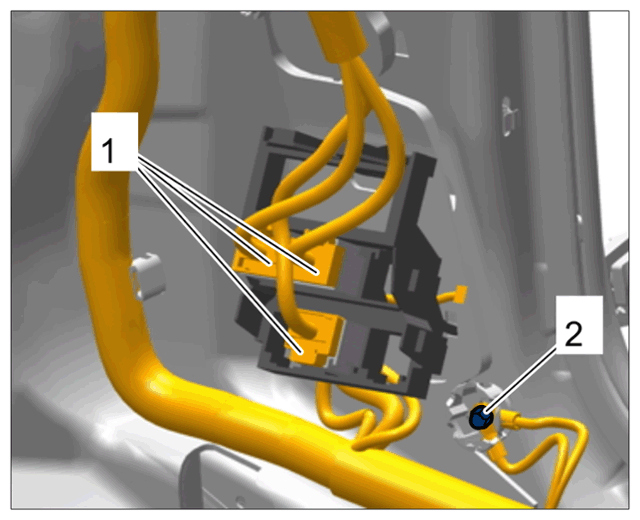

Fastening nut securing ground line to ground pin in body	Position 1	Tightening torque	9 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line

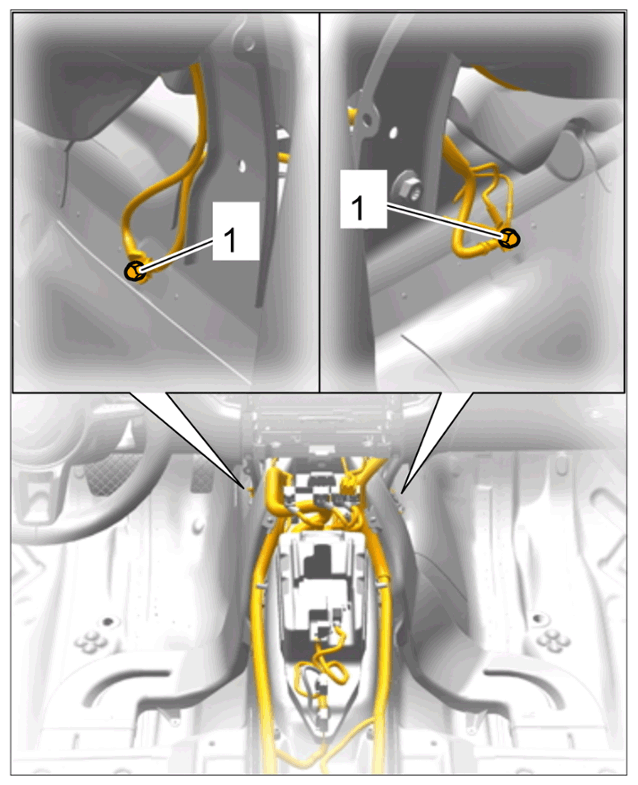

Fastening nut securing ground line to ground point	Position 1	Tightening torque	9 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line

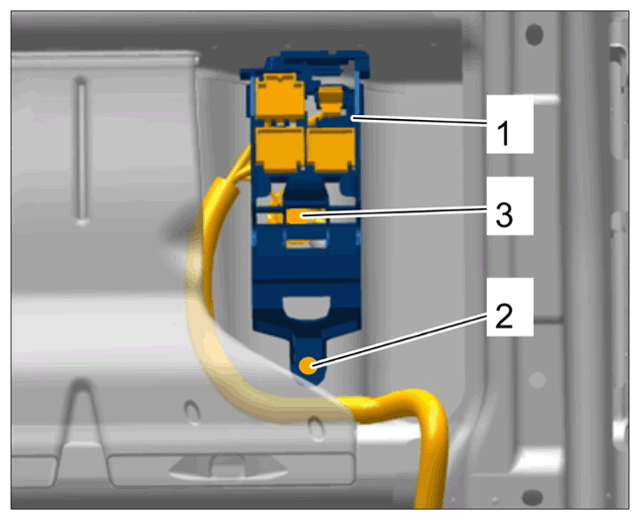

Fastening nut for ground point connector bracket	Position 2 and 3	Tightening torque	9 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connector bracket
