Technical Values

Location	Description	Type	Basic value
Fastening nut securing ground line to ground pin	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

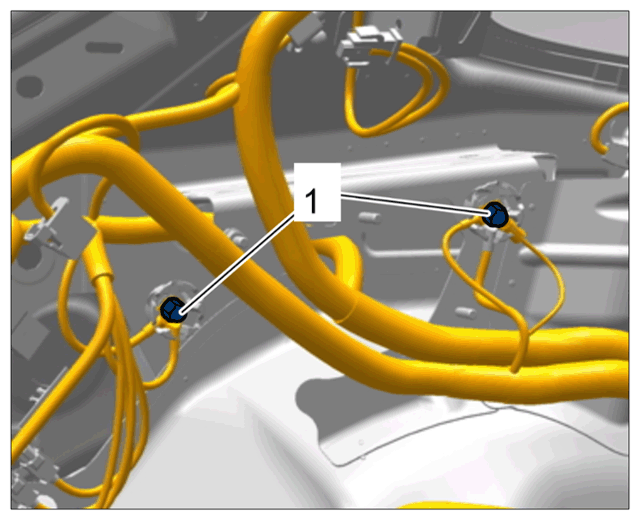

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground lines from ground points
Fastening nut securing ground line to ground point	Item 2	Tightening torque	9 Nm (6.5 ftlb.)

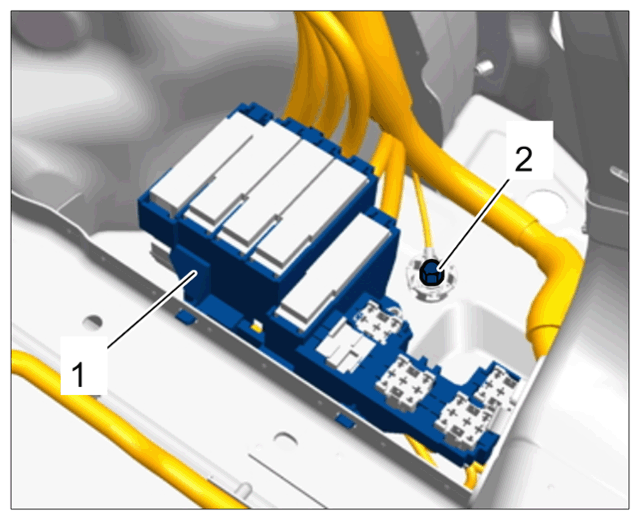

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Relay carrier and ground line
Fastening nut securing storage tray to body	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

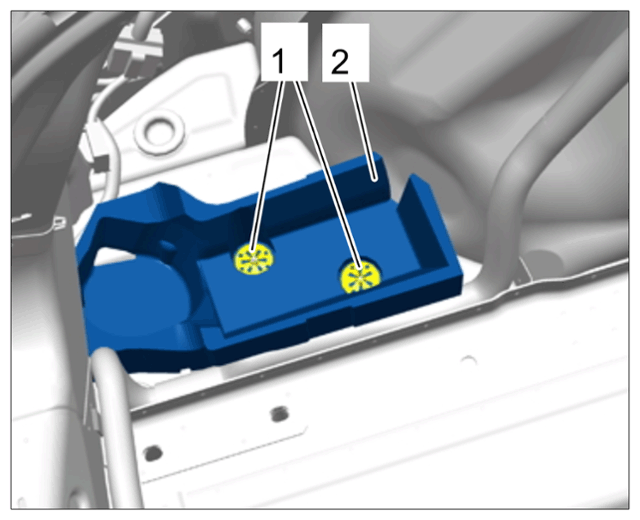

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Storage tray
