Installing Front Window Guide

Installation is performed in reverse order. Pay particular attention to the following:
Coat front window guide with rubber lubricant before fitting.

Position the seal as far as possible towards the front at the marked positions.

The seal must be fitted perfectly, without gaps.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

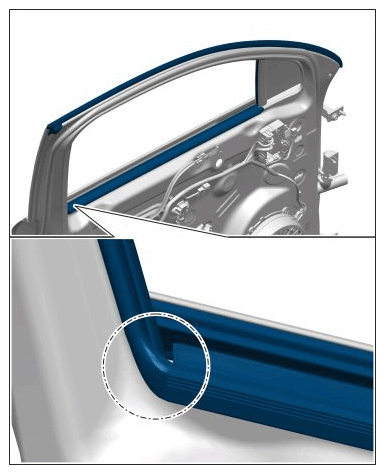

Assembly position of front window guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

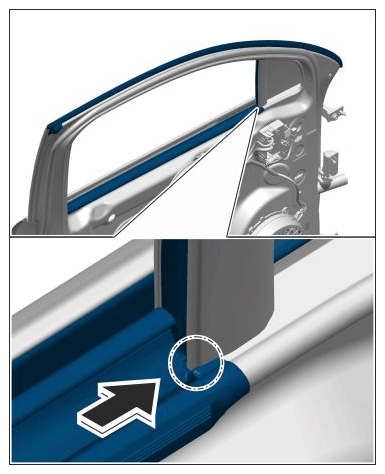

Assembly position of front window guide

After positioning the seal towards the front, make sure there is no gap at the rear. Front window guide must also be fitted here.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

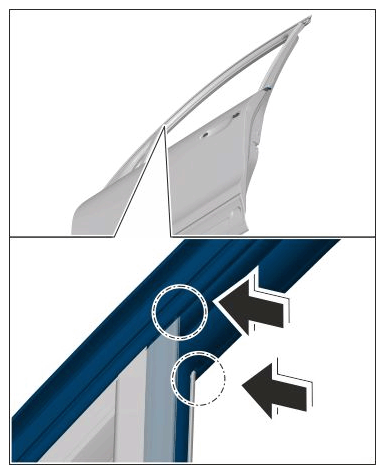

Assembly position of front window guide
