Removing Control Unit For Auxiliary Alarm System For PCC/VTS

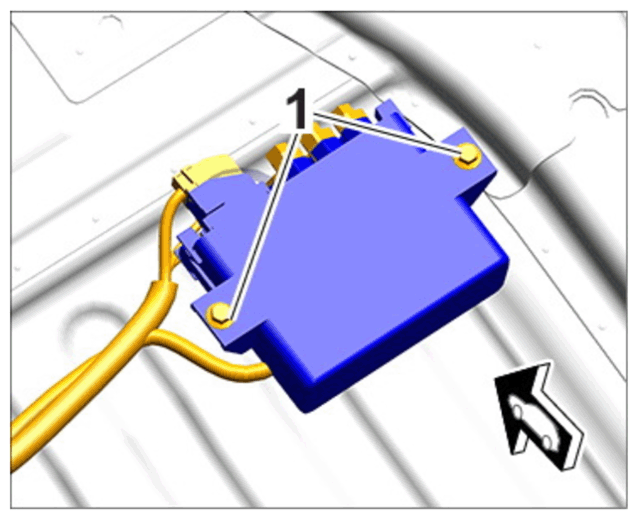

  1. Loosen shear-off nuts -1-  using > 9259 - socket-wrench insert  and remove holder for control unit for auxiliary alarm system for PCC/VTS.
    G15162289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit for auxiliary alarm system for PCC/VTS

  2. Remove control unit for auxiliary alarm system for PCC/VTS from its holder.

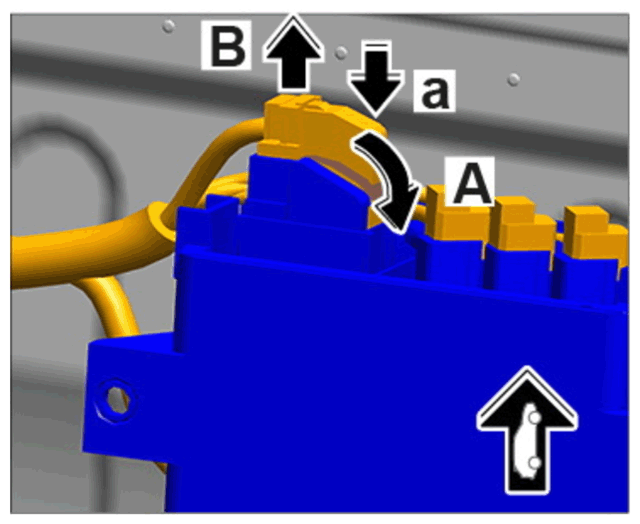

  3. Release electric plug connection -arrow a-  , fold the securing clip over -Arrow-  and disconnect electric plug connection -arrow B-  .
    G15162290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

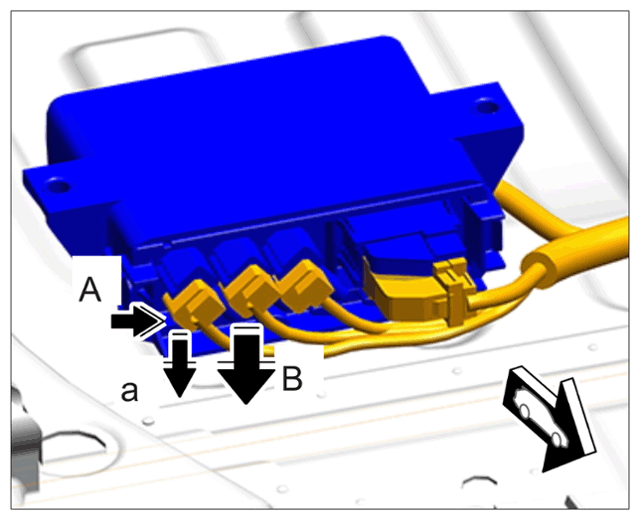

  4. Release antenna plug connections -arrows a and A-  and disconnect them -arrow B-  .
    G15162291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna plug connections

  5. Remove control unit for auxiliary alarm system for PCC/VTS from the vehicle.
