Installing Control Unit For Auxiliary Alarm System For PCC/VTS

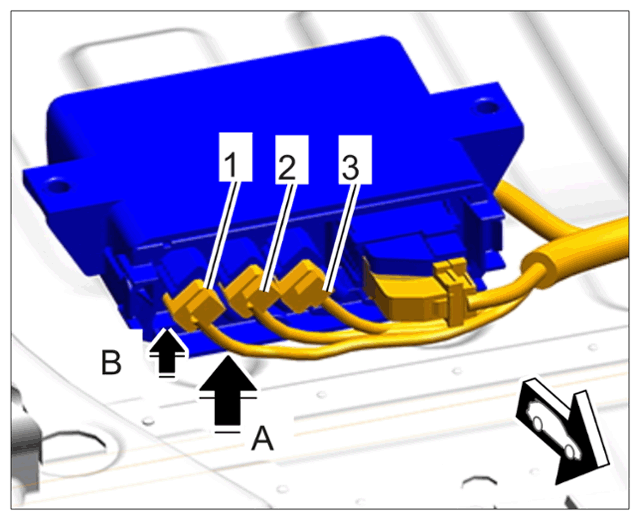

Plug in antenna plug connections for GSM -1- , GPS -2- and driver card -3-arrow A- and lock them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna plug connections

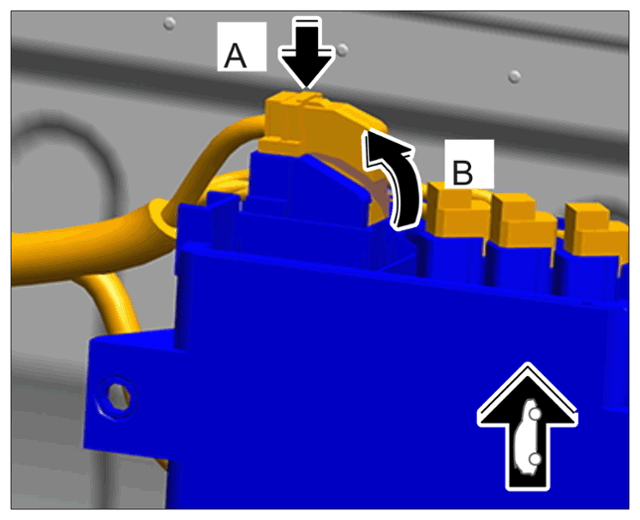

Plug in electric plug connection -arrow A- and fold locking clip over -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

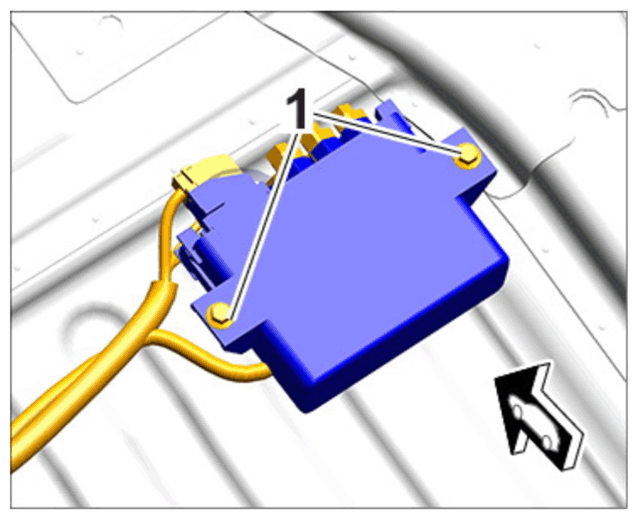

Push control unit for auxiliary alarm system for PCC/VTS into holder and position it on the screw bolts.
Tighten shear-off nuts -1- until they break off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for auxiliary alarm system for PCC/VTS
