Installing Gateway Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tighten fastening screw -1-  to > Tightening - torque 9 Nm (6.5 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

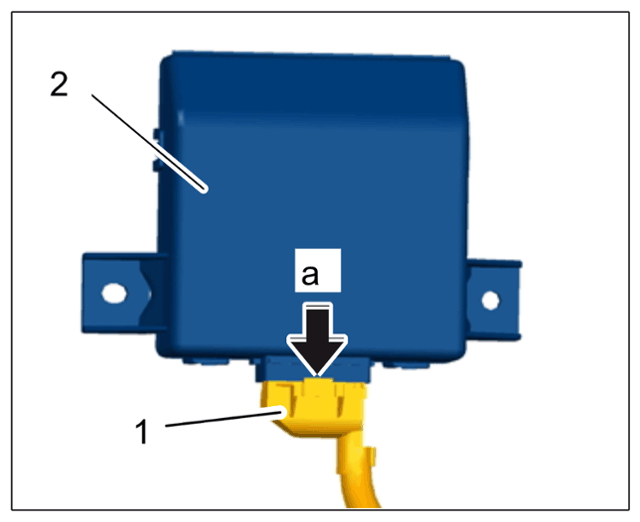

   Electric plug connection
