90 Instruments -- 95B - MACAN (95B)
>>
WM, 902119 - Removing And Installing Compass
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

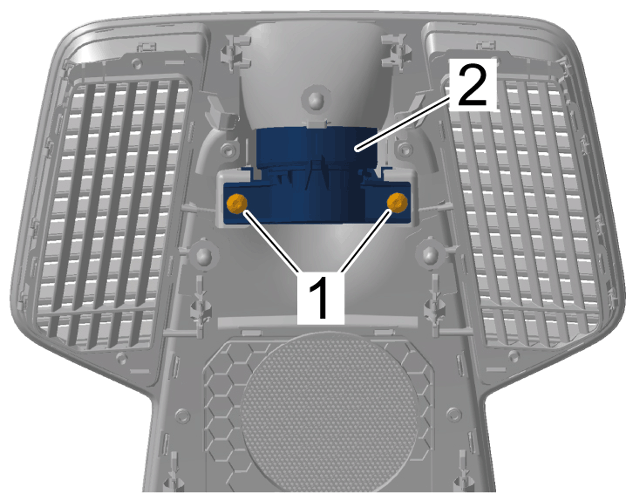

Fastening screws securing compass to cover for centre loudspeaker
Item 1
Tightening torque
3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
