Removing Compass

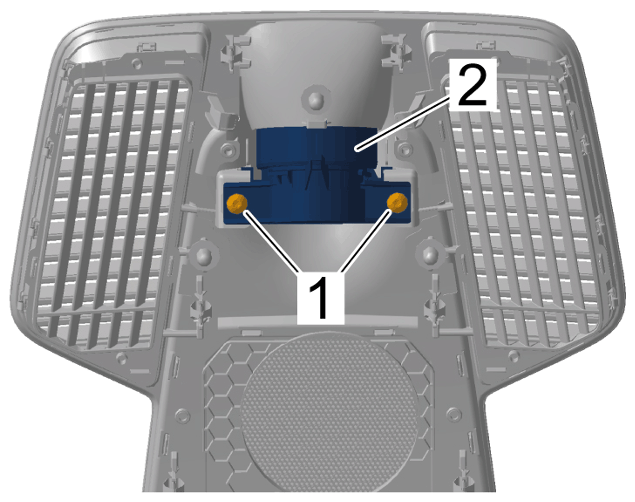

  1. Unscrew fastening screws -1-  from compass -2-  .
    G15162249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for compass

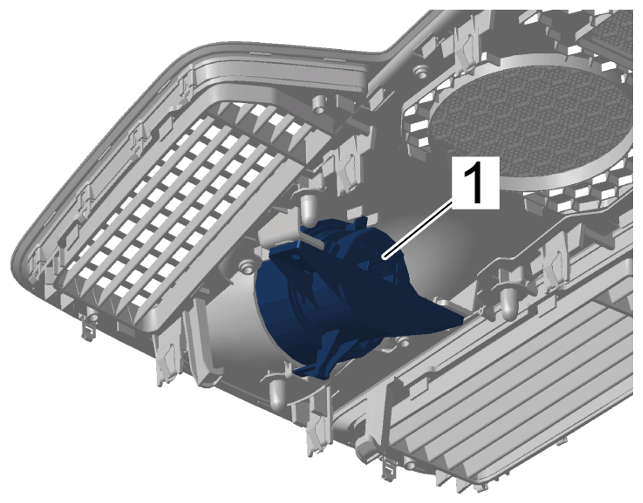

  2. Pull compass -1-  out of trim panel for (centre) loudspeaker.
    G15162250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Compass
