Removing Auxiliary Headlights (Turbo)

1. Unclip cover and remove it.
2. Remove auxiliary headlights (Turbo) -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

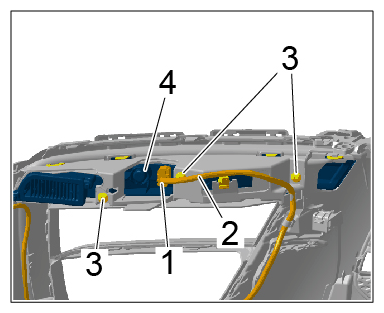

Auxiliary headlights (Turbo)

1. 2.1 Release and unplug electric plug connection -1-  .
2. 2.2 Unclip electric wire harness -2-  .
3. 2.3 Unscrew fastening screws -3-  .
4. 2.4 Unclip auxiliary headlights (Turbo) -4-  by pulling them forward.
